Pemko 325XGSSN Door Bottom Sweep, Fire Door Excessive Gap Solution

Pemko 325XGSSN Door Bottom Sweep for Excessive Gaps

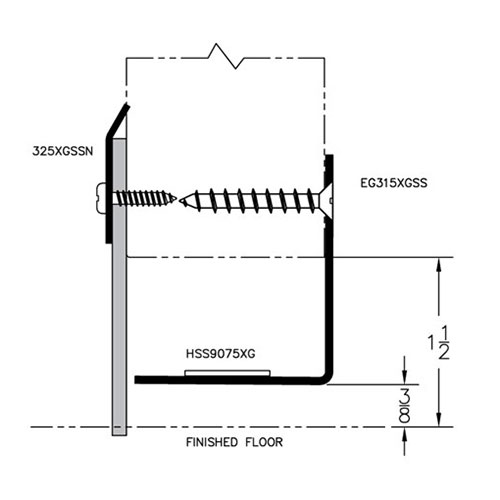

The 325XGSSN Series presents a U-shaped Stainless Steel Door Shoe tailored for doors with significant gaps, accommodating all door models and effectively addressing gaps of up to 1-1/2″. The kit encompasses a stainless steel door bottom sweep with a neoprene gasket, complete with an end plate kit and featuring the HSS9075XG high-performance intumescent, ensuring a comprehensive solution for efficient gap sealing and fire protection, with the clearance between the door and bottom angle and the finished floor not exceeding 3/8″.

Pemko’s line of Excessive Gap seals help bring fire doors back into compliance.

• Brings fire doors into compliance with code
• Eliminates costly expense of replacing doors
• Quick and easy resolution to fire door inspection issues
• UL Classified for use on openings with gaps in excess of those outlined in NFPA 80
• Suitable for use on gaps up to 1-1/2”
• Furnished with HSS9075XG intumescent applied to door bottom angle
• Clearance between door bottom angle and finished floor is to be no more than 3/8″
• Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood, and plastic-covered composite core doors
• End plate kit provided to finish off door edge

• LENGTHS: 36 and 48″
• WIDTH: 3/16″ (4.76 mm)
• HEIGHT: 2-15/16″ (74.68 mm)

MATERIAL

• Stainless Steel with Dense Neoprene Insert

FINISHES

• 325XGSSN – Stainless Steel, #4 Brushed, Black Neoprene Insert
• 325XGSSBSPN – Black Suede Powder Coated Stainless Steel, Black Neoprene Insert
• 325XGSSWSPN – White Suede Powder Coated Stainless Steel, Black Neoprene Insert
• 325XGSS10BEN – Satin Bronze Powder Coated Stainless Steel, Black Neoprene Insert
