Pemko 356_V T-Shaped Astragal with Eco-V Vinyl Insert

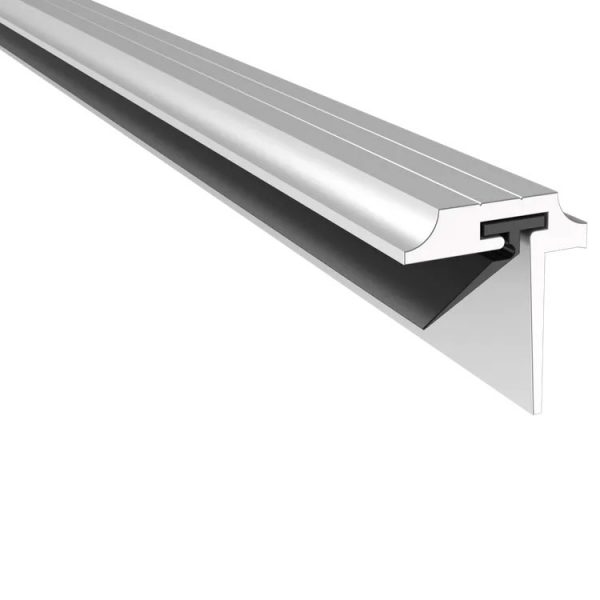

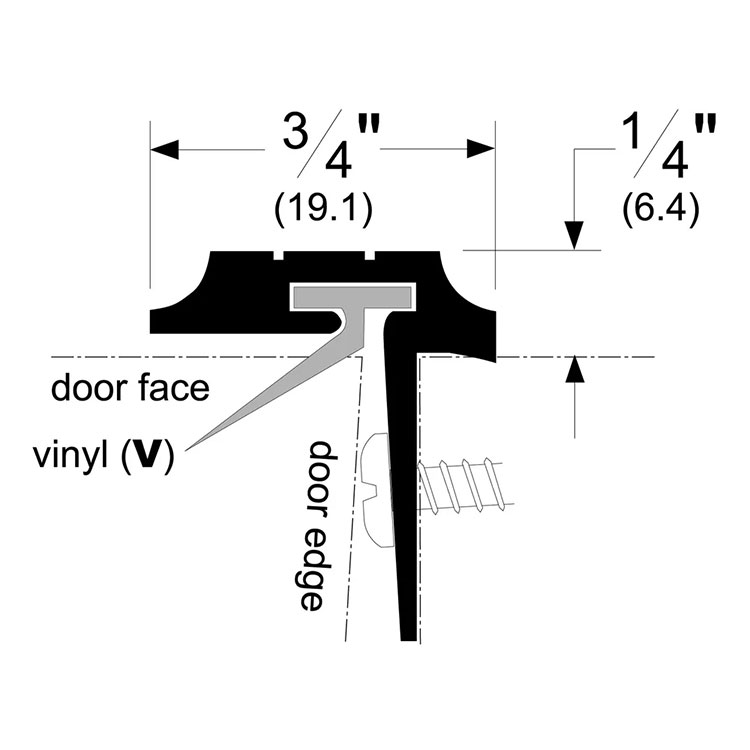

Pemko 356_V Surface-Mounted T-Shaped Astragal with Eco-V (V) Vinyl Insert

The 356 T-shaped Astragal with Eco-V (V) insert is perfect for office environments with double-door entryways, offering insulation and preventing the infiltration of smoke, sound, light, drafts, and insects. It is surface mounted and available in various aluminum finishes to match your room decor. The meeting stile creates a continuous seal between the doors without impeding their operation.

When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.

• Surface mounted
• Applied to single active door in a pair of double doors
• Creates a continuous seal
• Seals the gap between paired doors by compressing the seal
• Installation on fire doors must meet NFPA 80 requirements
• Door coordinator needed when both doors are active

Finishes

• 356CV: C – Clear Anodized Aluminum with Vinyl insert
• 356BSPV: BSP – Black Suede Powder Coat with Vinyl insert
• 356DV: D – Dark Bronze Anodized Aluminum with Vinyl insert

Ratings

•  Air Infiltration Tested
•  Smoke Tested – UL1784
•  Fire Rated – UL10C – Positive Pressure
•  Underwriters Laboratory 4L10
•  GREENGUARD Gold Certified
