Pemko 90041_NB Door Bottom Sweep with Nylon Brush Insert

Usually Ships: 5-10 Business Days

Fitted with a nylon brush to seal gaps under the door
Prevents dust, drafts, air, wind, insects, and water infiltration
Fire-rated and air tested

Available Options:

Finish

Length

Clear

Quantity:

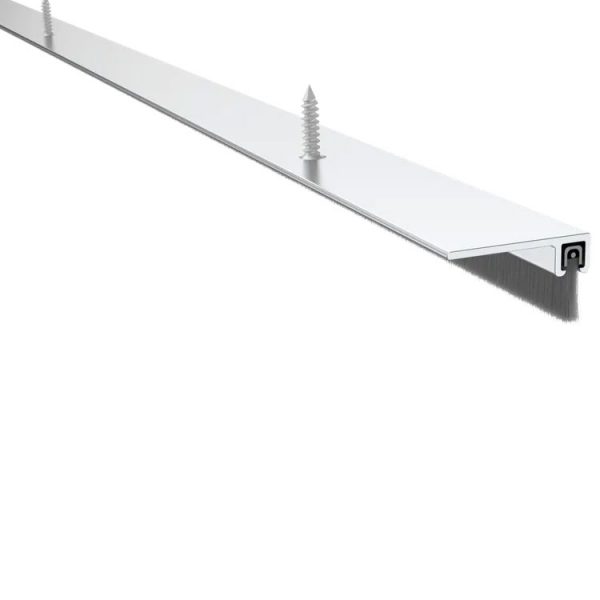

Pemko 90041_NB 90° Aluminum Retainer Brush Seal with 3/8″ Nylon Brush Insert

The 90041 Brush Gasket with 90 degree aluminum retainer and 3/8″ brush is designed to effectively seal the gap beneath doors, preventing dust, drafts, air, wind, insects, and water infiltration. This customizable door sweep is available in clear anodized aluminum or dark bronze anodized aluminum finishes.

Fitted with a nylon brush to seal gaps under the door

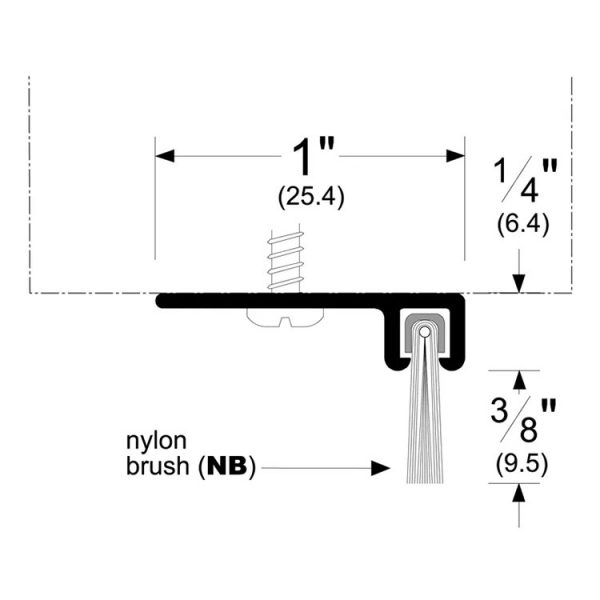

Compressed nylon filaments are set in a 90° angle aluminum casing for direct contact with the floor surface
Casing is applied to the bottom of the door which eliminates exposed mounting screws for additional security
Slotted holes make it easy to adjust after installation
Available as .375″ nylon brush (NB), or as .375″ soft brush (SB)
Brush remains flexible down to -40°F and has a melting point above 400°F
Use on overhead, section, sliding, and automatic doors
For hollow metal or wood door applications
Smooth gliding brushes automatically adjust to slightly uneven floors
Brush seals reduce the infiltration of smoke, fumes, weather and light
UV stable, dependable, long-lasting and cost effective
Naturally repells rodents and spiders
Design allows use as a concealed seal for many applications

Certifications

GREENGUARD Gold Certified
UL 4L10 listed
UL 1784 – Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Brand	Pemko
Length	36", 48"
Finishes	C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Fire Rating	Fire Rated – UL10C – Positive Pressure
