Pemko FM_HD1-FIREPIN Full Mortise Continuous Gear Hinge, Heavy-Duty, 3-Hour Fire-Rated

Usually Ships: 10-15 Business Days
  • ANSI/BHMA A156.26 and UL certified
  • Includes FirePins for 3-hour fire-rated doors
  • Full mortise, concealed hinge

Available Options:

Pemko _FM_HD1 x FIREPIN_ Full Mortise Anodized Aluminum Continuous Geared Hinge, Heavy Duty, 3 Hour Fire-Rated

Heavy Duty Anodized Aluminum Continuous Geared – designed mainly for new door applications.

  • Applied to conceal both leaves
  • Fasteners are #12-24 x 11/16” flat head undercut, type c, thread-forming fasteners, no tapping required
  • ANSI/BHMA A156.26 and UL certified
  • Fire-rated up to 3 hours with fire pin installation
  • Width: 5/16” (between frame edge and door edge)
  • Cap Width: 25/32”
  • Height: 1-7/8” (to flange/frame edge side)
  • Height: 11/16” (flange to top of cap)
  • Length: 83″ or *95″

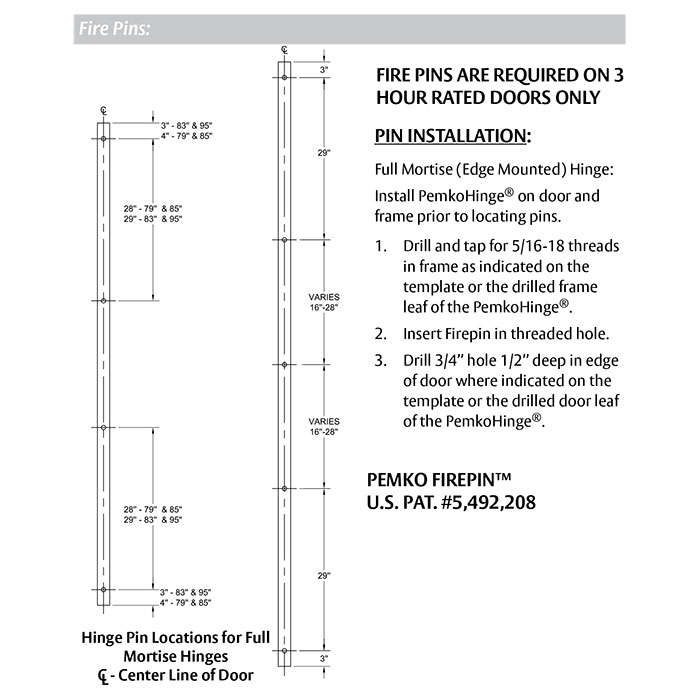

  • Fire Pins: FIREPIN-C4 with 83″ hinge. FIREPIN-C5 with 95″ hinge

*excessive length surcharge applies to 95″ model

Finishes

  • C – Clear Anodized Aluminum
  • D – Dark Bronze Anodized Aluminum
  • BSP – Black Suede Powder Coat
  • WSP – White Suede Powder Coat

Models: CFM83HD1xFIREPIN-C4, CFM95HD1xFIREPIN-C5, DFM83HD1xFIREPIN-C4, DFM95HD1xFIREPIN-C5, BSPFM83HD1xFIREPIN-C4, BSPFM95HD1xFIREPIN-C5, WSPFM83HD1xFIREPIN-C4, WSPFM95HD1xFIREPIN-C5

codes-pemko-hinge

Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream. Meet criteria of UBC 7.2 for positive pressure.

Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat, WSP White Suede Powder Coat

Continuous Hinge Type

Full Mortise (Concealed)

Length

83" (for 7'0" door), 95" (for 8'0" door)

Material

Aluminum

Usage

Heavy Duty

Door Applications

1-3/4″ Thick Doors

Warranty

10 Years
