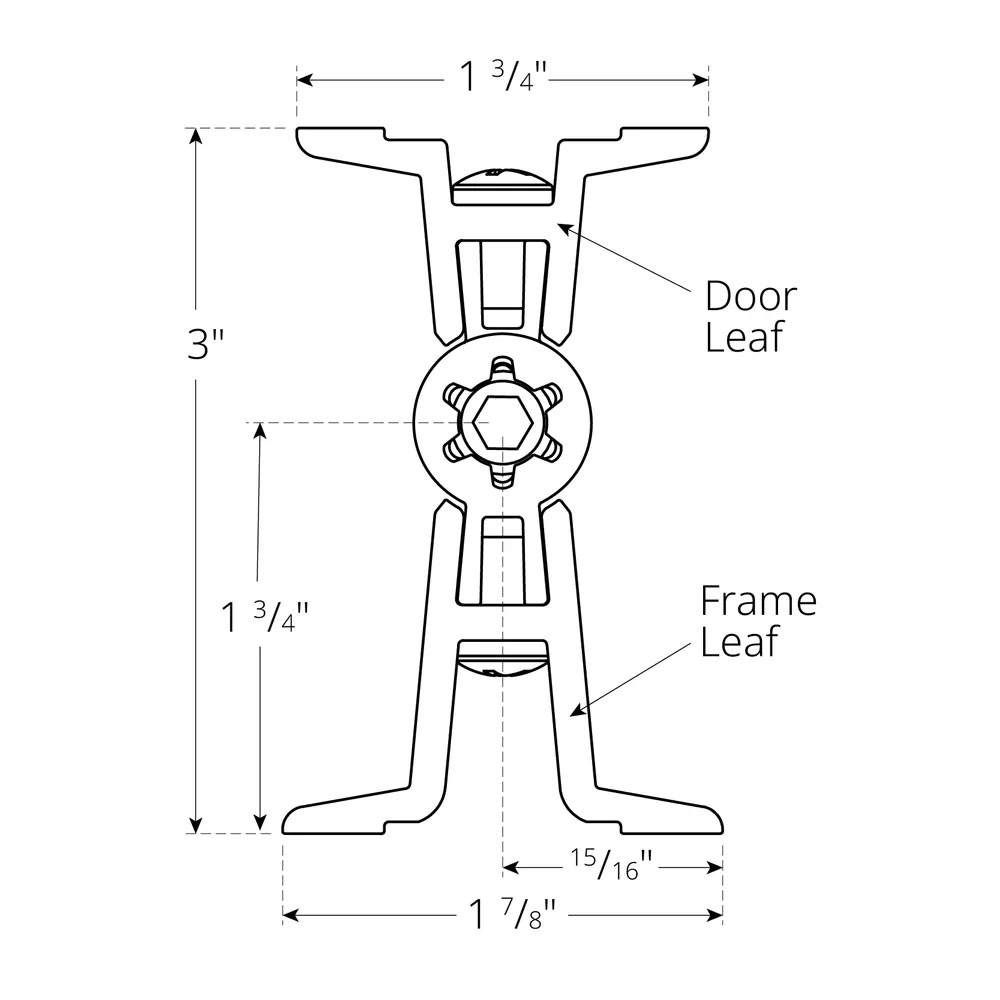

Pemko DSH1000 Behavioral Health Double Swing Pin and Barrel Continuous Hinge

Pemko DSH1000 Heavy Duty Behavioral Health Double Swing Pin and Barrel Continuous Hinge

The DSH1000 Double Swing Pin and Barrel Hinge allows the door to swing 100-degrees in either direction for emergency access. When combined with the Pemko Emergency Release Stop (ERS), this hinge form a complete anti-barricade system.

Features

• Designed specifically for behavioral health applications
• Allows the door to swing 100 degrees in either direction for emergency access
• Combine with Pemko Emergency Release Stop (ERS) or multipoint version (ERSMP) for complete anti-barricade system
• Supports weights up to 600lbs., 4’0″ maximum door width

Benefits

• Prevents door barricades by allowing door to swing inward or outward
• 100-degree maximum swing in either direction, provides full access
• Hard stop prevents pinched fingers
• Suitable for use in high risk mental health applications
• Guaranteed for the life of the opening against defects in material or workmanship

Certifications

• New York State Office of Mental Heath Recommended
• ANSI/BHMA Standard A156.26 Grade 1
