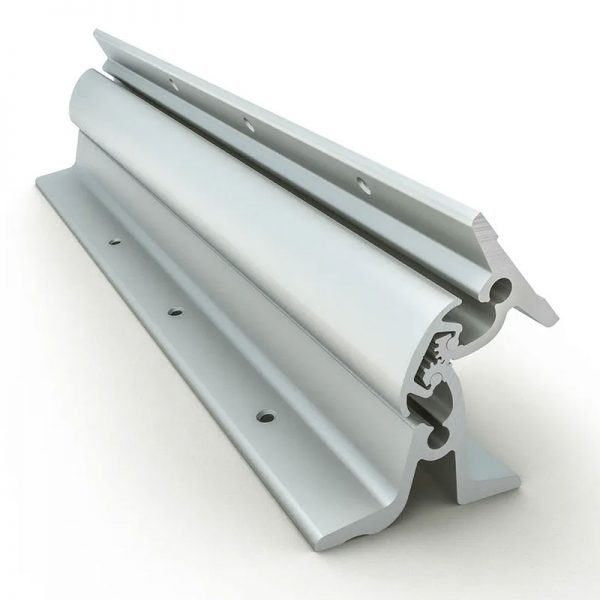

Pemko DSHP01 General Healthcare Double Swing Continuous Geared Hinge

Pemko DSHP01 Heavy Duty General Healthcare Double Swing Continuous Geared Hinge

The DSHP01 Double Swing Continuous Geared Hinge allows door to swing up to 100-degrees in both directions. When paired with our Emergency Release Stop (ERS) this product is ideal for healthcare applications where someone is incapacitated, and access is needed from the corridor side of the opening.

Features

• Door swings 100 degrees in either direction
• Use with Pemko Emergency Release Stop (ERS) for a complete anti-barricade system
• In an emergency, stop is discharged to allow door to swing in the opposite direction
• Use in cased openings where panic hardware is needed

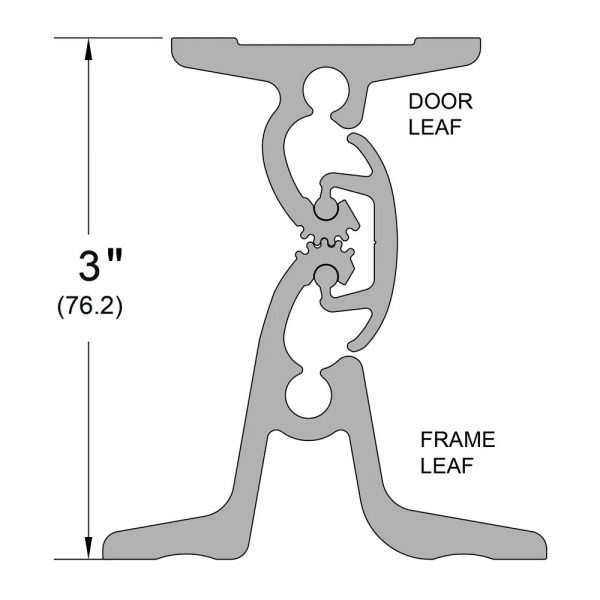

• 1/8″ hinge frame and door leaf offset eliminates ligature points
• Security Torx fasteners included

Benefits

• Allows for quick access in urgent situations
• Prevents barricading when used with the Emergency Release Stop (ERS)
• Eliminates ligature points across the top of the hinge
• Critical for medical and assisted care applications
