Pemko ERS/ERSMP Emergency Release Stop With Hospital Tip and Flush Bolt

Pemko ERS/ERSMP Emergency Release Stop With Hospital Tip and Flush Bolt

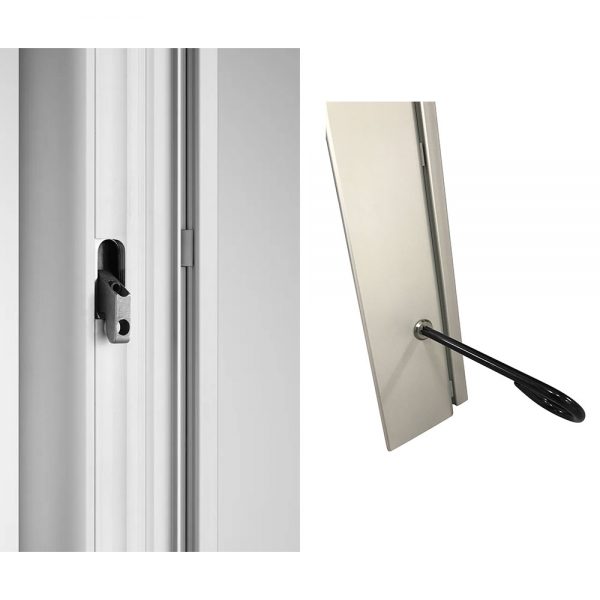

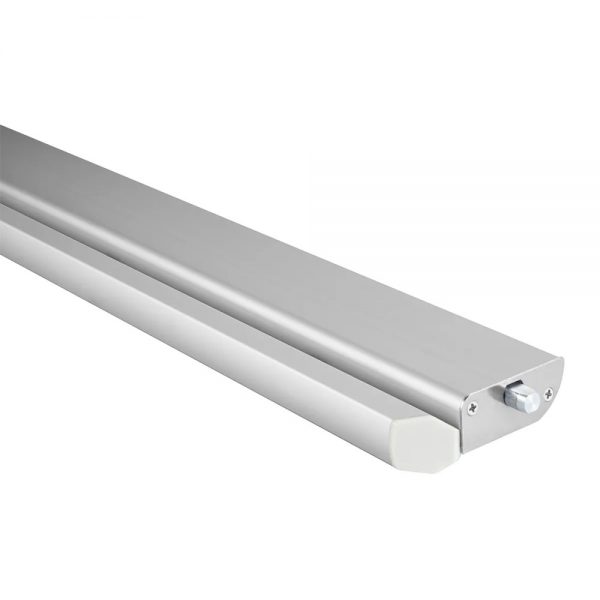

The ERS Emergency Release Stop and ERSMP Emergency Release Stop with Multi-Point Latch can be used in combination with our DSH double swing hinge to create a complete anti-barricade system. This stop features a special flush bolt that is used to release the door in emergency situations and allow it to swing in the opposite direction.

Features

• Used on the strike side of the door as a stop for normal operation
• In an emergency, the stop is discharged for the door to swing in the opposite direction
• Use with Pemko Double Swing Hinge (DSH) for a complete anti-barricade system
• Designed for use in a cased opening or on a single rabbet frame
• Access plug secured by TORX security screws
• Hospital tips (HT) are standard
• Notch is mandatory for all ERS/ERSMP models

Benefits

• Allows for quick access in urgent situations
• Prevents barricading when used with the Double Swing Continuous Geared Hinge (DSH)
• Eliminates ligature points across the top of the hinge
• Critical for medical, behavioral health, and assisted living applications

Certifications

• New York State Office of Mental Health Recommended
