Pemko EZgap XG10 Series Adhesive Backed Intumescent Gasket

Usually Ships: 5-10 Business Days

Suitable for use on gaps between 3/32″ – 1/4″
UL10C approved for 45-minute fire-rated wood doors
Helps bring fire doors back into compliance

Available Options:

Finish

Roll Length

Clear

Quantity:

Pemko EZgap XG10 Series Adhesive Backed Intumescent Gasket, UL10C Approved for 45 Minute Fire-Rated Wood Doors

The EZgapTM XG10 Series intumescant gasketing is a single piece, flexible solution for excessive gaps ranging from 3/32″ to 1/4″. The EZgap product attaches to the door frame with peel and stick adhesive with no additional hardware, and its small size makes it easy to transport and store.

Surface-applied intumescent gasket
Graphite and flexible elastomeric base material
Melts in the same temperature range as its flexible graphite intumescent core begin to expand
Excessive gap solution that fits irregular door gaps between 3/32″ – 1/4″
UL10C approved for 45-minute fire-rated wood doors

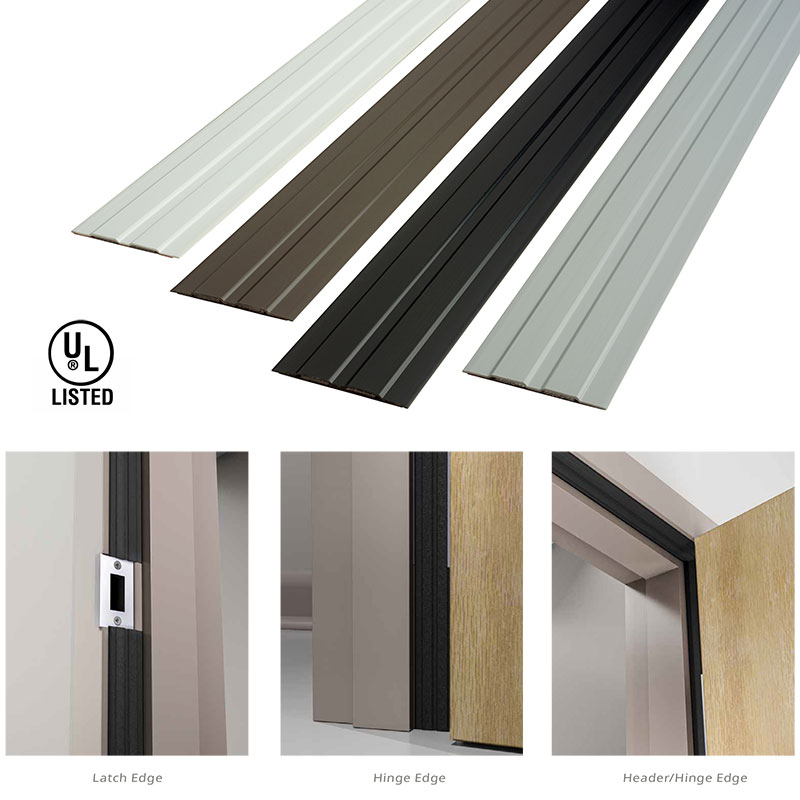

Ideal for independent use on latch edge, hinge edge, or header, or, as a full perimeter application
Supplied with self-adhesive tape for fast, easy installation
Can be cut to desired length in field with heavy scissors
Semi-rigid PVC casing
Packed in small box that is easy to transport and store
No metallic fasteners needed for installation
Good resistance to water and humidity
UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies

Brand	Pemko

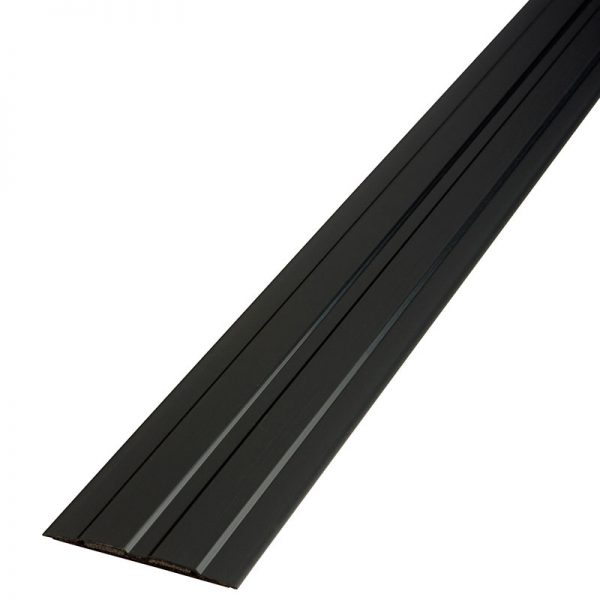

Finishes	BR – Brown, BL – Black, GR – Gray, W – White
Roll Length	18' Roll, 50' Roll
Fire Rating	UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
