Pemko FS_CP Full Surface Center Pivot Continuous Gear Hinge

Usually Ships: 5-10 Business Days
  • ANSI/BHMA certified
  • Standard duty, 6″ bearing space
  • Applies to the exposed surface of door and frame

Available Options:

Pemko_FS_CP Standard Duty Anodized Aluminum Center Pivot Continuous Geared Hinge

Designed mainly for retrofit work, and are applied to the exposed surfaces of the door and frame. Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces.

  • 12 fasteners required for each leaf

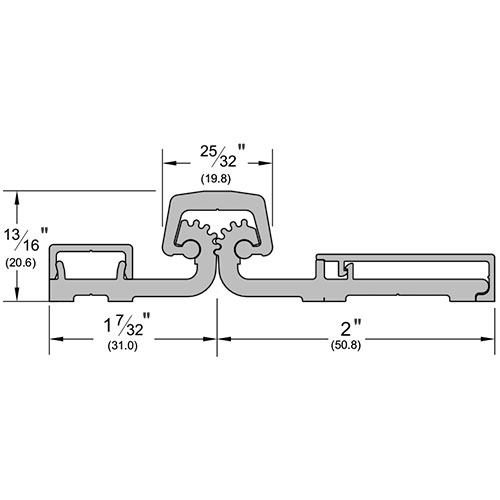

  • Width: 1-3/16” (frame side – leaf)
  • Width: 2” (door side – leaf)
  • Cap Width: 25/32”
  • Height: 3/4” (total height of hinge)
  • Length: 83″ or *95″
  • Fire Rated – UL10C – Positive Pressure
  • Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006

*excessive length surcharge applies to 95″ model

codes-pemko-hinge
Models: CFS83CP, CFS95CP, DFS83CP, DFS95CP

Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Continuous Hinge Type

Full Surface

Material

Aluminum

Usage

Standard Duty

Door Applications

1-3/4″ Thick Doors

Warranty

10 Years
