Pemko FS_Full Surface Continuous Gear Hinge

Usually Ships: 1-2 Business Days
  • ANSI/BHMA certified
  • Designed mainly for retrofit work
  • Applies to the exposed surface of door and frame

Available Options:

Pemko _FS_ Standard Duty Anodized Aluminum Full Surface Continuous Geared

Designed mainly for retrofit work, and are applied to the exposed surfaces of the door and frame.

  • Weight-bearing (per BHMA standard ANSI/BHMA A156.26-2006) for standard models: 83″ = 14 bearings, door weight = 280 lbs
  • 10 fasteners required for each leaf
  • 6″ between bearing centers

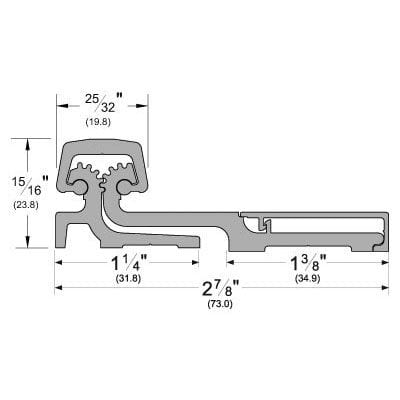

  • Width: 1-1/4” (frame side – leaf)
  • Width: 1-3/8” (door side – leaf)
  • Cap Width: 25/32”
  • Height: 29/32” (total height of hinge)
  • Length: 83″ or *95″
  • Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006
  • No restrictions on frame gauge and wall conditions
  • No restriction on cutting hinges in field
  • No special cutting instructions or voided warranties
  • No special door and frame preps up to and including 90-minute doors

*excessive length surcharge applies to 95″ model

codes-pemko-hinge
Models: CFS83, CFS95, DFS83, DFS95

Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 95" (for 8'0" door)

Continuous Hinge Type

Full Surface

Material

Aluminum

Usage

Standard Duty

Door Applications

1-3/4″ Thick Doors

Warranty

10 Years
