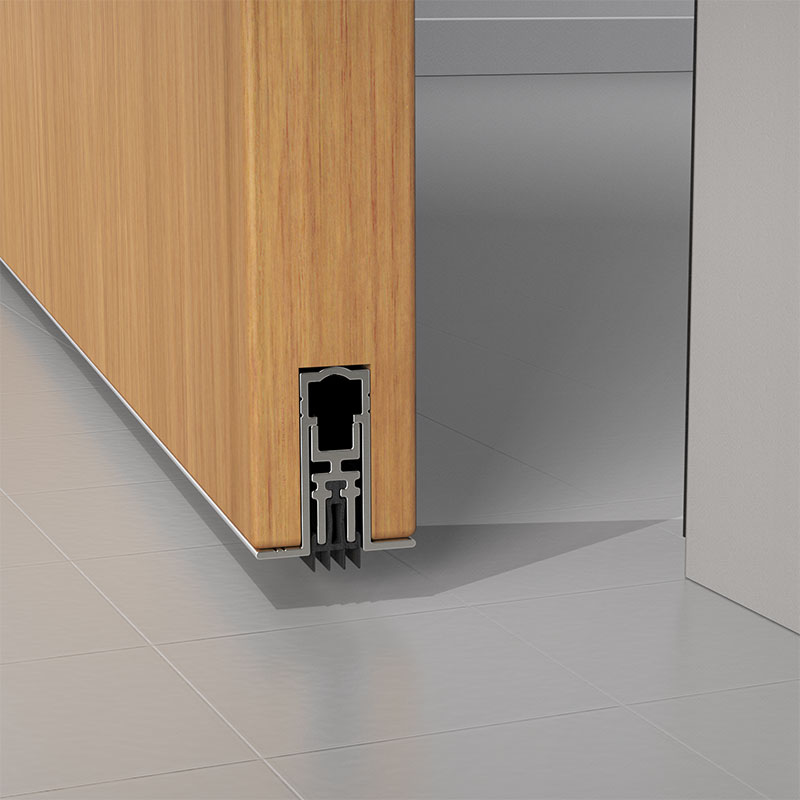

Pemko-PEMKOSTCSET-1A-Acoustic-Seal-Set-Door-Application

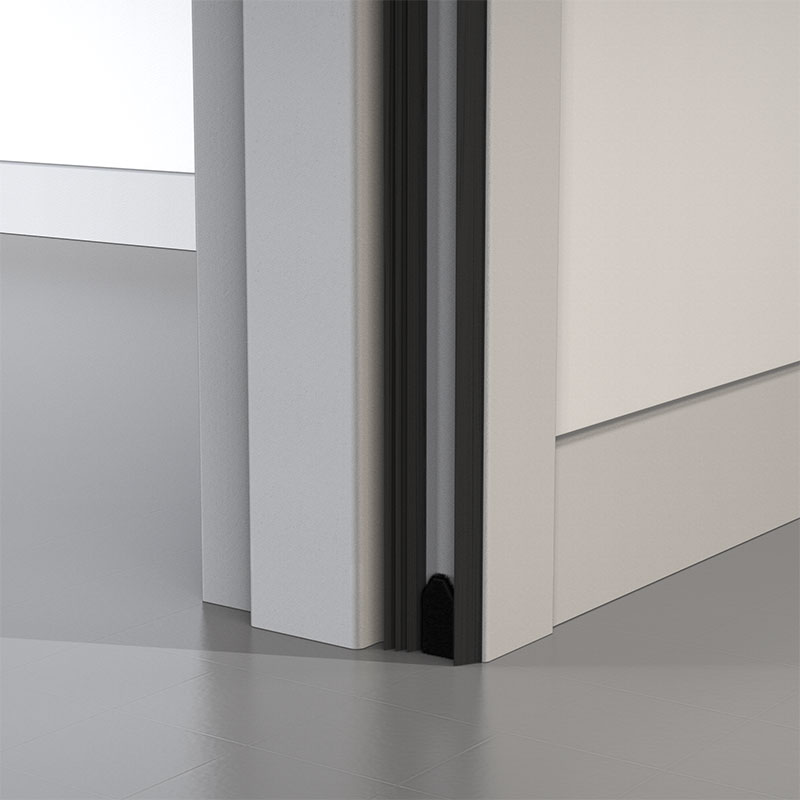

Pemko-PEMKOSTCSET-1A-Acoustic-Seal-Set-Frame-Application

Pemko PEMKOSTCSET-1A Acoustical Door Seal Set

Usually Ships: 5-10 Business Days

Complete STC solution in a kit
Includes ACP112BL, STC411APK, S773BL, and S44BL
Sound tested, fire-rated, and smoke tested

Available Options:

Clear

Quantity:

Pemko PEMKOSTCSET-1A Acoustical Seal Set for Frames and Doors

This kit combines the Pemko S773 and S44 adhesive-back style gasket with the Pemko STC411APK acoustic automatic door bottom to provide optimal performance and easy installation while gaskets remain unseen when the door is in the closed position.

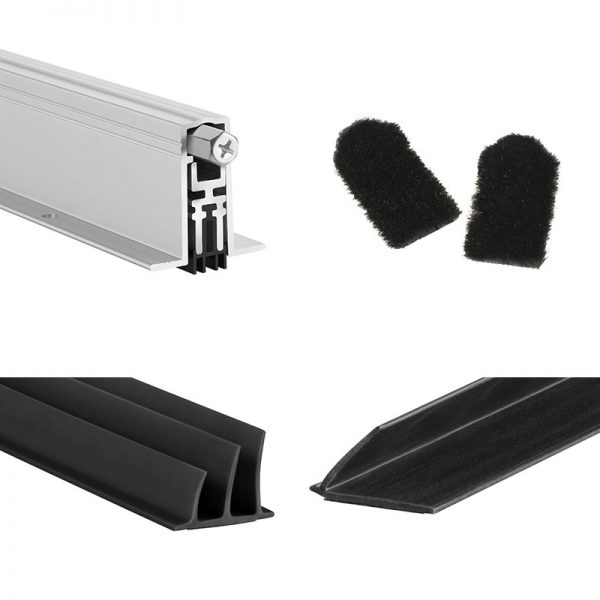

Kit Includes:

ACP112BL: Black Pile
STC411APK: A – Mill Finish Aluminum with Black PemkoPrene insert
S773BL: BL – Black Silicone (Single Row)
S44BL: BL – Black Silicone (Single Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of:	Decible (dB) drop from Operable STC Rating
Under 42	0 dB

43 to 45	0 dB

46 to 48	-1 dB

49 to 53	-2 dB

Features

Superior acoustic performance
Lab-tested sealing solutions
Meets ANSI Standard S12.60-2002
Use with any STC Rated Door
Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
BHMA Certified
Smoke Tested – UL1784
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified
