Pemko PEMKOSTCSET-1D Acoustical Door Seal Set

Usually Ships: 5-10 Business Days

Complete STC solution in a kit
Includes ACP112BL, STC411APK, 303AS, and S44BL
Sound tested, fire-rated, and smoke tested

Available Options:

Clear

Quantity:

Pemko PEMKOSTCSET-1D Acoustical Seal Set for Frames and Doors

This kit combines the Pemko 303AS screw-applied gasket with silicone bulb, Pemko S44 adhesive-back style gasket, and Pemko STC411APK acoustic automatic door bottom to provide optimal performance and easy installation.

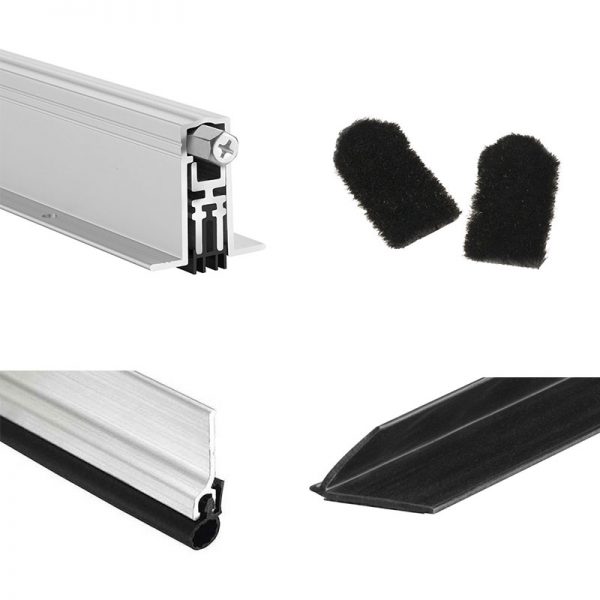

Kit Includes:

ACP112BL: Black Pile
STC411APK: A – Mill Finish Aluminum with Black PemkoPrene insert
303AS: A – Mill Finish Aluminum Aluminum with Black Silicone insert
S44BL: BL – Black Silicone (Single Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of:	Decible (dB) drop from Operable STC Rating
Under 42	0 dB

43 to 45	0 dB

46 to 48	-1 dB

49 to 53	-2 dB

Features

Superior acoustic performance
Lab-tested sealing solutions
Meets ANSI Standard S12.60-2002
Use with any STC Rated Door
Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
BHMA Certified
Smoke Tested – UL1784
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified
