Pemko PEMKOSTCSET-4E Acoustical Door Seal Set

Usually Ships: 5-10 Business Days
  • Complete STC solution in a kit
  • Includes ACP112BL, 2009APK, 312CR, and S44BL
  • Sound tested, fire-rated, and smoke tested

Available Options:

Pemko PEMKOSTCSET-4E Acoustical Seal Set for Frames and Doors

This kit combines our 312CR screw-applied gasket with sponge EPDM gasket, S44 adhesive-back style gasket, and our 2009APK acoustic threshold with integrated stop to provide optimal performance. The 2009APK threshold provides a continuous seal across the width of the opening and seals against the bottom rail and the face of the door to aid with dampening and absorption of sound waves.

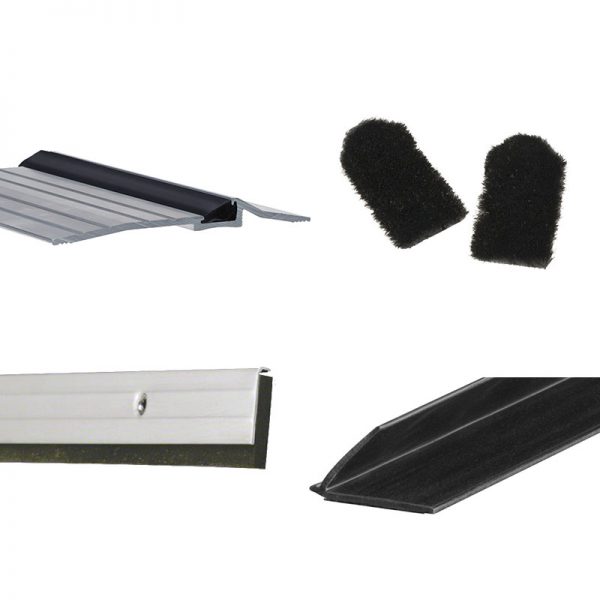

Kit Includes:

  • ACP112BL: Black Pile
  • 2009APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
  • 312CR: C – Clear Anodized Aluminum with Black Sponge EPDM insert
  • S44BL: BL – Black Silicone (One Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of: Decible (dB) drop from Operable STC Rating
Under 42 0 dB
43 to 45 0 dB
46 to 48 -1 dB

Features

  • Superior acoustic performance
  • Lab-tested sealing solutions
  • Meets ANSI Standard S12.60-2002
  • Use with any STC Rated Door
  • Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

  •  Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
  •  Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

STC

Brand

Size

36" x 80", 36" x 84", 36" x 96", 48" x 80", 48" x 84", 48" x 96", 72" x 84", 72" x 96", 96" x 96"
