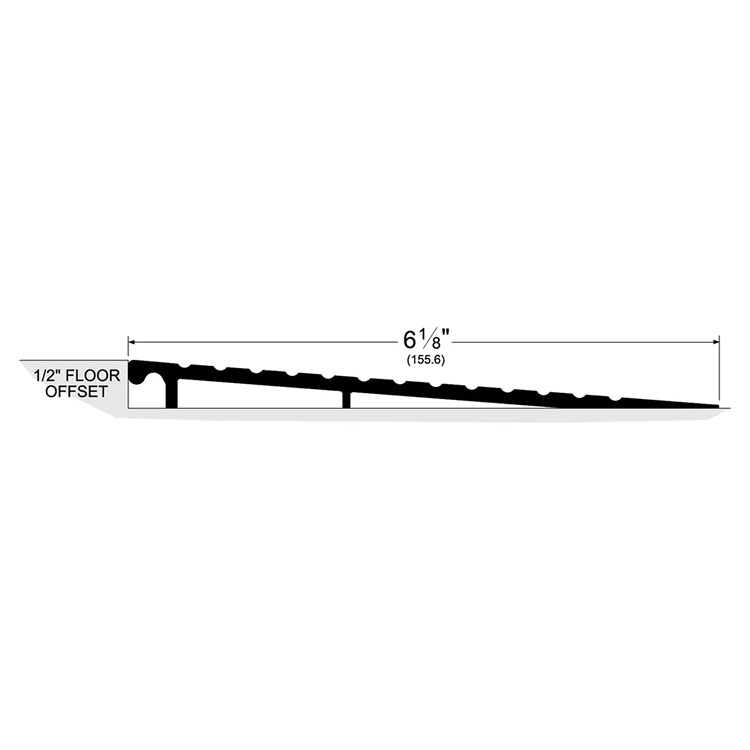

Pemko R.5F_ ADA Compliant Modular Ramp Flush Threshold Assembly – 6-1/8″ Wide x 1/2″ High

Usually Ships: 5-10 Business Days
  • 6-1/8″ wide x 1/2″ floor offset
  • Perfect for transitioning between offset floor conditions
  • Barrier-free, ADA compliant, ICC/ANSI A117.1

Available Options:

Product Overview

Pemko R.5F_ 1/2″ H x 6-1/8″ W ADA Compliant Aluminum Ramp

The R.5F Flush Modular Ramp Assembly with 1/2″ high offset is 6-1/8″ wide and perfect for seamlessly transitioning between offset floor conditions. It provides a smooth and safe passage for individuals with limited mobility. PemKote non-slip coating application is highly recommended for added protection. Optional Miter Returns (not ADA compliant) are also available for added convenience.

Assemblies accommodate 1⁄2″ to 21⁄4″ floor offsets in meeting the 1:12 slope requirements of the “Americans with Disabilities Act”.

  • 6-1/8″ wide x 1/2″ offset
  • Assemblies are supplied with #10 stainless steel wood screws
  • Assemblies are provided NET length
  • Mill finish (optional Pemkote skid resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • R.5FA: A – Mill Finish Aluminum Aluminum
  • R.5FAK: AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

6-1/8"
Height

1/2"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
