Pemko R.5FMR_ Modular Ramp Flush Threshold Assembly with Miter Returns – 6-1/8″ Wide x 1/2″ High

Usually Ships: 5-10 Business Days
  • 6-1/8″ wide x 1/2″ floor offset
  • Perfect for transitioning between offset floor conditions
  • Includes one pair of WING10 miter returns

Available Options:

Product Overview

Pemko R.5FMR_ 1/2″ H x 6-1/8″ W Aluminum Ramp with Miter Returns

The R.5F Flush Modular Ramp Assembly with 1/2″ high offset is 6-1/8″ wide and perfect for seamlessly transitioning between offset floor conditions. It provides a smooth and safe passage for individuals with limited mobility. PemKote non-slip coating application is highly recommended for added protection. Miter Returns included (not ADA compliant)

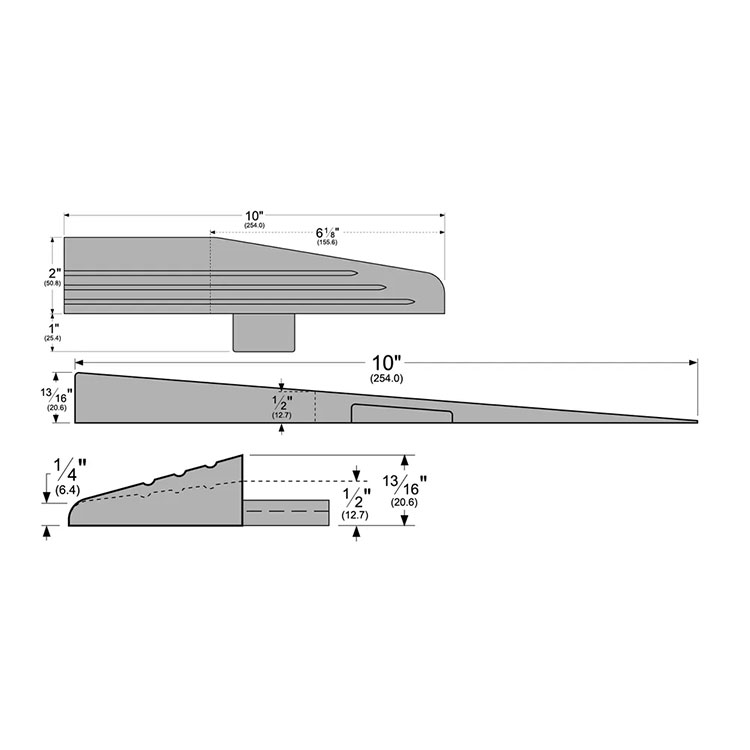

The WING10 Series Miter Returns are 10″ wide cast aluminum “wings” designed to fit into the end of a modular ramp threshold assembly. They provide a neat and tight-fitting solution, replacing traditional mitering methods. Please note that these miter returns are not ADA compliant.

  • 6-1/8″ wide x 1/2″ offset
  • Assemblies are supplied with #10 stainless steel wood screws
  • Assemblies are provided NET length
  • Cast aluminum “wings” fit into each end of a modular ramp threshold assembly, and are fastened to the ramp mid sections with self-tapping machine screws.
  • Mill finish (optional Pemkote skid-resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • R.5FMRA: A – Mill Finish Aluminum Aluminum
  • R.5FMRAK: AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

6-1/8"
Height

1/2"
Fire Rating

Fire rated-UL10c
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
