Pemko-R.75OSSA
Pemko-R.75OSSA

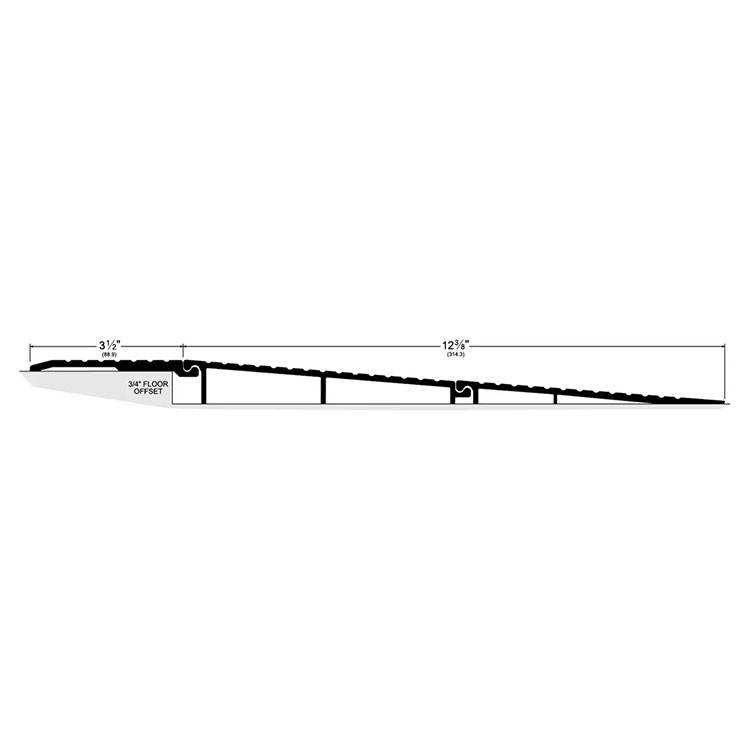

Pemko R.75OSS_ ADA Compliant Offset Modular Ramp Threshold Assembly – 15-7/8″ Wide x 3/4″ Offset

Usually Ships: 5-10 Business Days
  • 15-7/8″ wide x 3/4″ floor offset
  • Provides transition between offset floor conditions
  • Barrier-free, ADA compliant, ICC/ANSI A117.1

Available Options:

Product Overview

Pemko R.75OSS_ 3/4″ H x 15-7/8″ W ADA Compliant Aluminum Interlocking Ramp

The R.75OS 3/4″ Offset Modular Ramp Assembly with a 3-1/2″ top plate and 15.88″ width is designed to provide smooth and safe passage to individuals with limited mobility when transitioning between offset floor conditions. PemKote non-slip coating application is highly recommended for added protection.

Assemblies accommodate 1⁄2″ to 21⁄4″ floor offsets in meeting the 1:12 slope requirements of the “Americans with Disabilities Act”.

  • 15-7/8″ wide x 3/4″ offset
  • 3/4″ floor offset
  • 3-1/2″ top plate
  • Number of components: 3
  • Assemblies are supplied with #10 stainless steel wood screws
  • Assemblies are provided NET length
  • Mill finish (optional Pemkote skid resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • R.75OSSA: A – Mill Finish Aluminum Aluminum
  • R.75OSSAK: AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

15-7/8"
Height

3/4"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
