Pemko RAMP6_ Ramp Component for Modular Ramp Assembly – 3-1/8″ Wide x 1-1/4″ Offset

Usually Ships: 5-10 Business Days
  • Used with other components to reach 1-1/4″ flush offset
  • Eliminates need to weld joints
  • Conforms to uneven surfaces

Available Options:

Clear

Pemko RAMP6_ Ramp Component for Modular Ramp Assembly – 3-1/8″ Wide x 1-1/4″ Offset

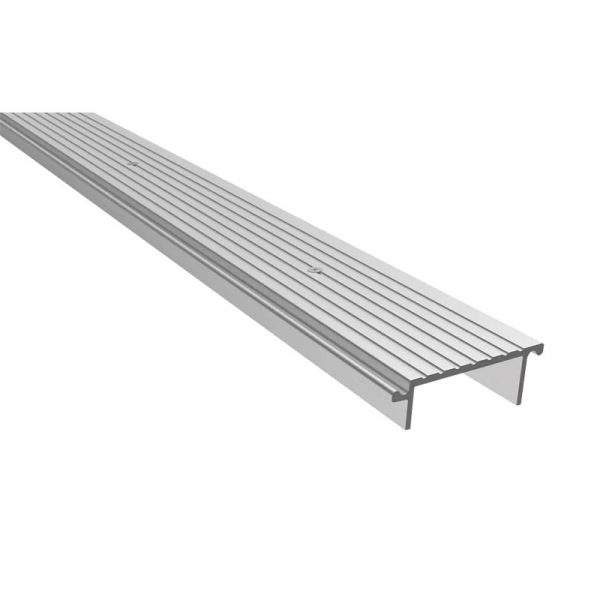

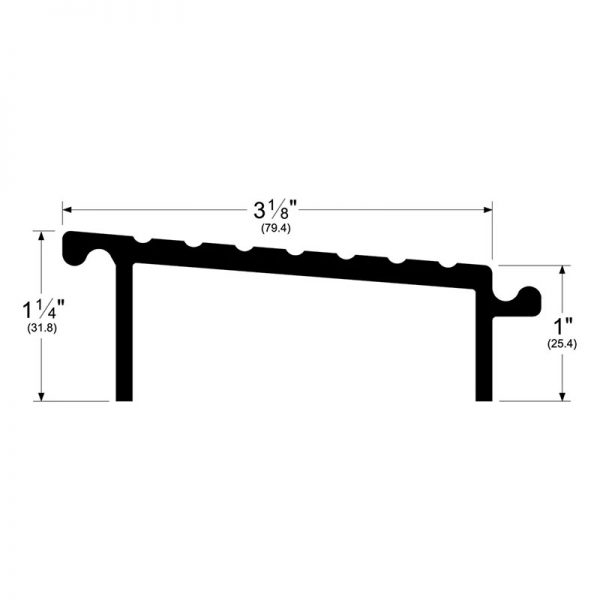

The RAMP6 is a 3-1/8″ ramp component designed to reach up to a 1-1/4″ offset. It is part of the modular ramp components series and is made with durable materials for long-lasting use. It’s BHMA certified, ADA compliant, and UL 10C fire rated.

  • Used with other components to reach 1-1/4″ flush offset
  • Fire-rated
  • PemKote highly recommended, especially exterior conditions where moisture may be present
  • Allows for creating configurations without cost of custom extrusions
  • Eliminates need to weld joints
  • Conforms to uneven surfaces

Finishes

  • A – Mill Finish Aluminum Aluminum
  • AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum

Length

36", 48", 60", 72", 84", 96"

Width

3-1/8"

Height

1-1/4"

Fire Rating

Fire rated-UL10c

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
