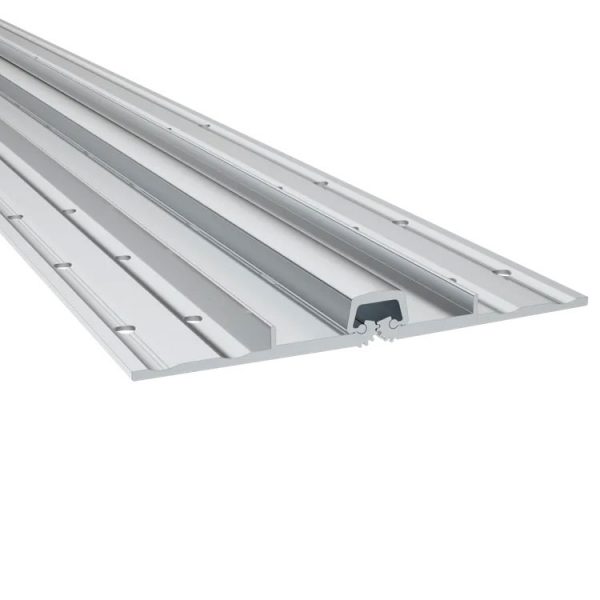

Pemko WT_FM-HD1 Full Mortise Wide Throw Continuous Gear Hinge, Heavy Duty

Usually Ships: 5-10 Business Days
  • ANSI/BHMA A156.26 and UL certified
  • Provides extra clearance between door and frame
  • Allows for a 180-degree swing

Available Options:
Clear

Product Overview

Pemko WT_FM Series Wide Throw Full Mortise Continuous Geared Hinge, Heavy Duty

The WT_FM Series Wide Throw Full Mortise Continuous Geared Hinge is heavy-duty and allows for a 180-degree swing, making it perfect for door applications that require special clearance.

Features

  • Heavy duty
  • Provides extra clearance between door and frame
  • Applied to conceal both leaves for safety and security
  • Certain door and frame conditions may require an extra 1/32″-1/16″ clearance
  • Special hinge reinforcements are not required
  • Hollow metal door and frame manufacturers’ standard is acceptable

Benefits

  • For extra clearance due to special frame, door, or wall design
  • Allows door to open 180 degrees
  • Guaranteed for the life of the opening against defects in material or workmanship
  • Removal of hinge reinforcements in the door and frame is not advised

Certifications

  • Health Product Declaration (HPD)
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
  • ANSI/BHMA Standard A156.26
Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Length

83" (for 7'0" door), 95" (for 8'0" door)
Continuous Hinge Type

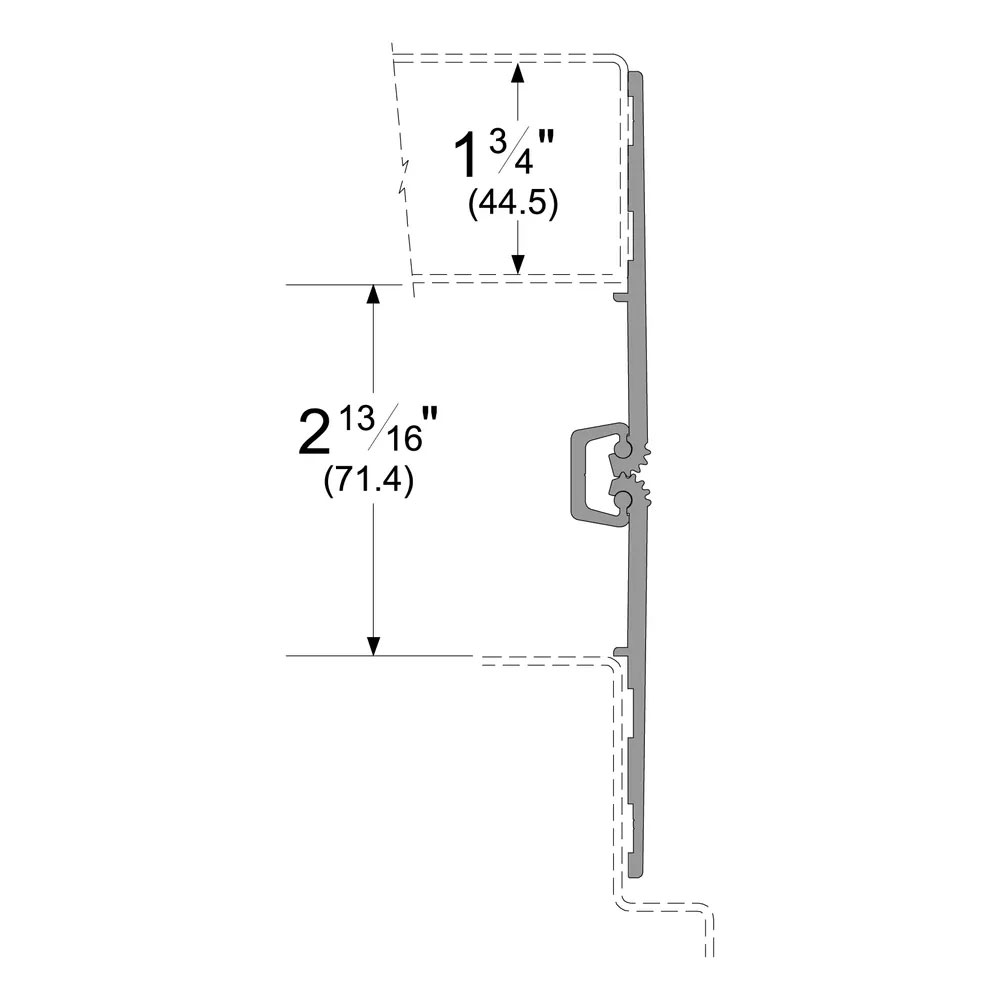

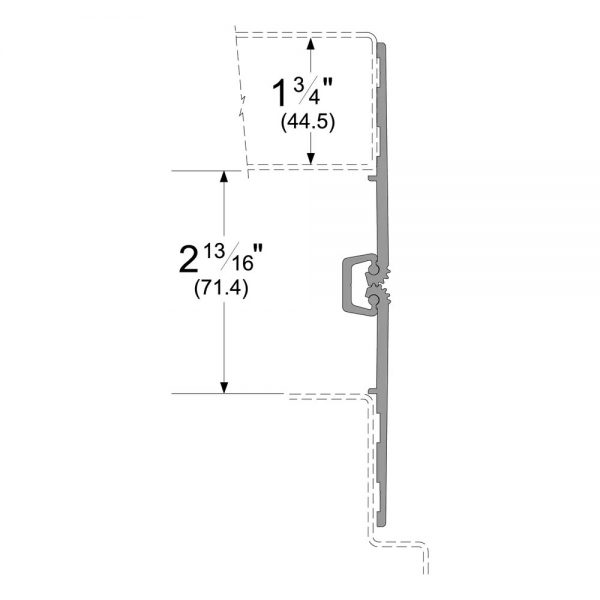

Full Mortise (Concealed), Wide Throw
Material

Aluminum
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA Standard A156.26 Grade 1
Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
