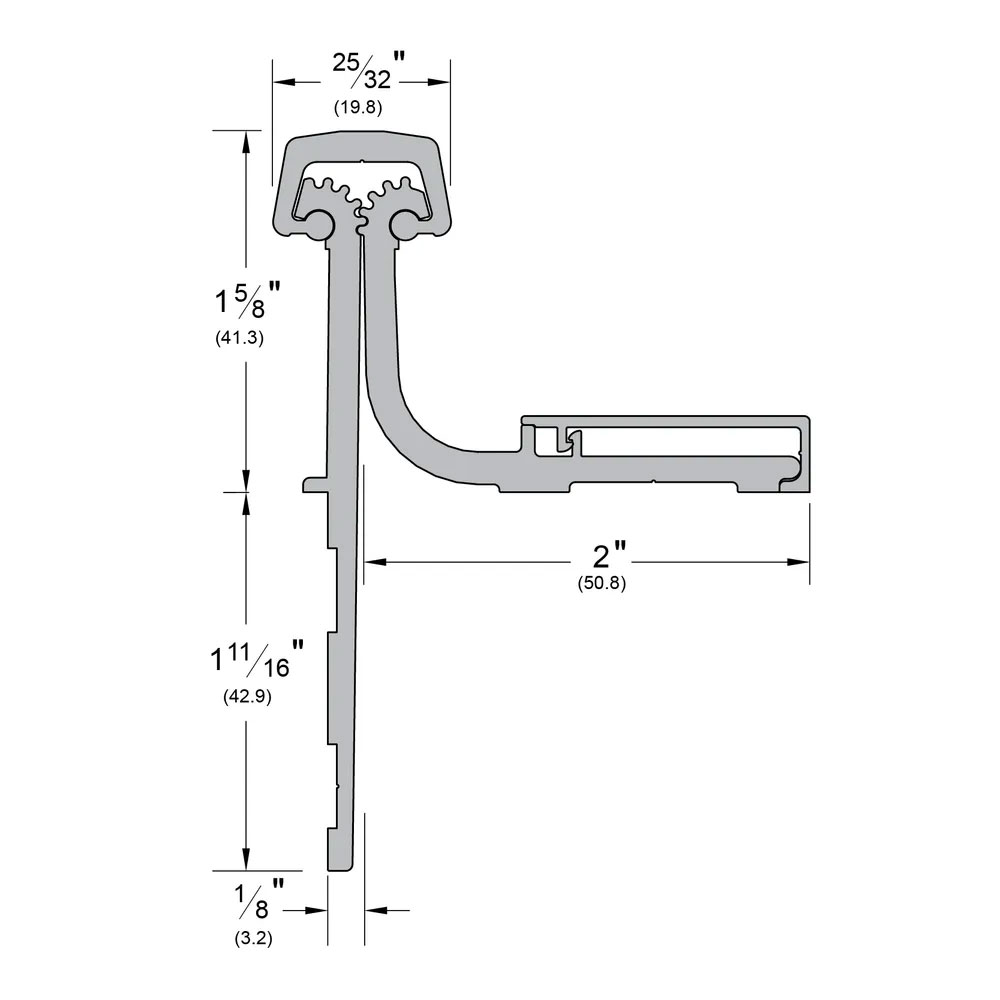

Pemko WT_HS-HD1 Half Surface Wide Throw Continuous Gear Hinge, Heavy Duty

Usually Ships: 5-10 Business Days

ANSI/BHMA A156.26 and UL certified
For retrofit applications that require extra clearance
Applied to the frame rabbet and the exposed door surface

Available Options:

Finish

Length

Clear

Quantity:

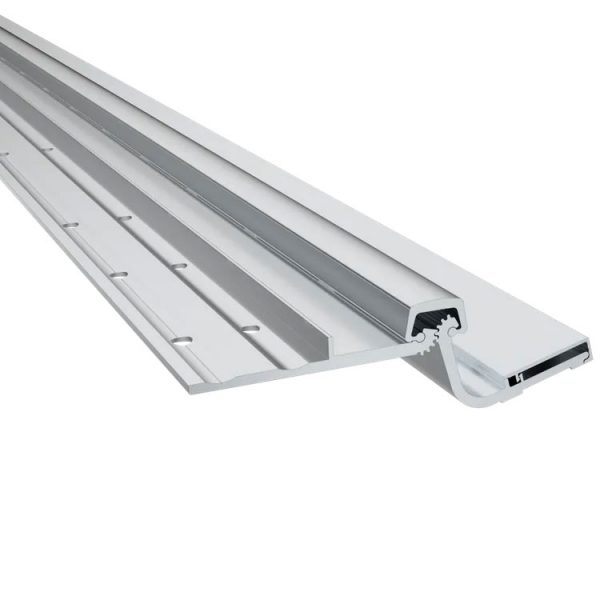

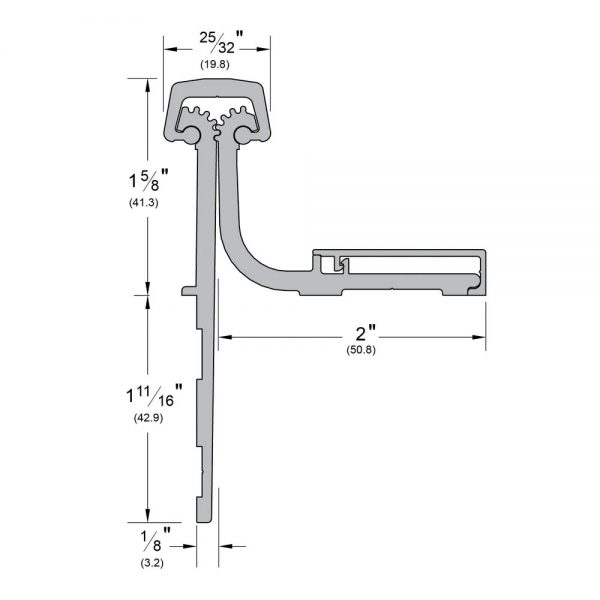

Pemko WT_HS Series Wide Throw Half Surface Continuous Geared Hinge, Heavy Duty

The WT_HS Series Wide Throw Half Surface Continuous Geared Hinge is designed mainly for retrofit applications that require extra clearance due to special frame, door, or wall design. This hinge, which is applied to the frame rabbet and exposed door surface, combines the versatility of a half surface unit and the clearance of a wide throw.

Features

Heavy duty
For retrofit applications that require extra clearance due to special frame, door, or wall design
Applied to the frame rabbet and the exposed door surface
Combines the versatility of a Half Surface unit and the clearance of a Wide Throw hinge
For use on swinging-type fire doors
For hollow metal, tin-clad, sheet metal, and steel covered composite type doors

Certifications

Health Product Declaration (HPD)
UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
ANSI/BHMA Standard A156.26

Brand	Pemko
Finishes	C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Length	83" (for 7'0" door), 95" (for 8'0" door)
Continuous Hinge Type	Half Surface, Wide Throw
Material	Aluminum
Usage	Heavy Duty
ANSI/BHMA Standard	ANSI/BHMA Standard A156.26 Grade 1
Fire Rating	UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
