Rockwood 2845 Combination Flush Bolt Set for Metal Doors

Usually Ships: 3-5 Business Days
  • For use with metal doors
  • Includes top and bottom bolts
  • UL Listed up to 90 Minutes (fire-rated)

Available Options:

Rockwood 2845 Combination Flush Bolt Set, for Metal Doors, 1″ by 6-3/4″

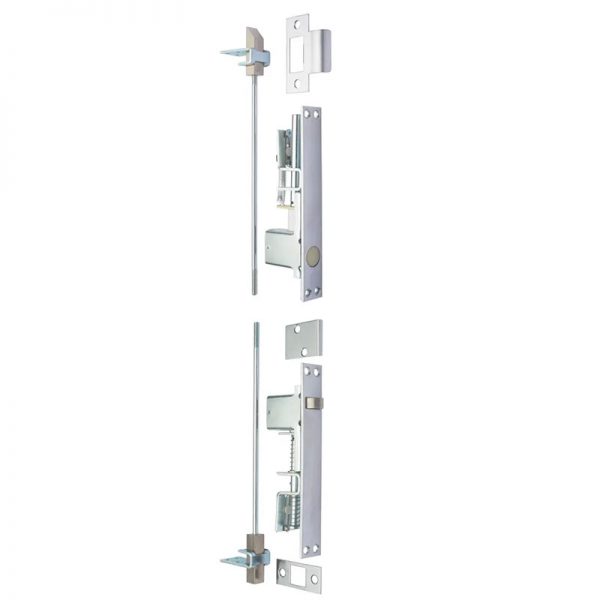

The 2845 Combination Flush Bolt Set (top and bottom bolts) is for select fire rated metal doors and features a top bolt that automatically engages when the inactive door closes. This set’s non-handed, fully automatic bottom bolt has an override feature that prevents damage to door or bolt if bolt head is blocked from entering strike and a thermal lock that automatically locks the inactive door under high heat conditions.

Features:

  • For metal doors
  • Can be used with the No. 570 Dust Proof Strike
  • UL Listed

Top Bolt:

  • Automatically engages when the inactive door closes. When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face.

Bottom Bolt:

  • Non-handed
  • Low closing force
  • Fully automatic–opening active door retracts bottom bolt
  • Override feature prevents damage to door or bolt if bolt head is blocked from entering strike
  • Bolt head rod is adjustable up to 3/4″
  • Thermal lock automatically locks the inactive door under high heat conditions due to fire
Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel

ANSI/BHMA Standard

Meets ANSI A156.3 Type 27

Fire Rating

UL Listed 90 Min fire doors 8’0" X 8’0"
