Rockwood 557 Lever Extension Flush Bolt for Wood Doors

Usually Ships: 3-5 Business Days

ANSI A156.16 L04261
UL Listed up to 90 minutes (fire-rated)
1 ea. per box (add 2 for a pair)

Available Options:

Finish

Clear

Quantity:

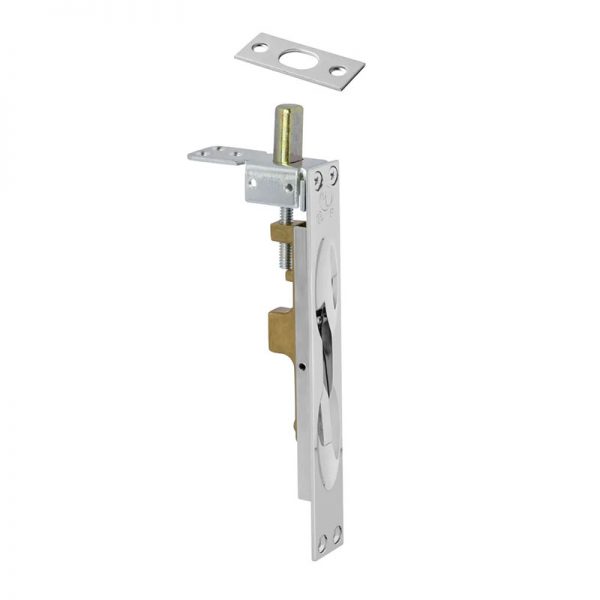

Rockwood 557 Lever Extension Flush Bolt

The cast brass 557 Lever Extension Flush Bolt is for use on select fire-rated plastic & wood-covered doors. This product maintains the door’s strength with its corner reinforcing plate and is compatible with the 570 Dust Proof Strike.

MATERIAL:

Cast Brass

FASTENERS:

7 ea. #8 x 3/4 FH Combo Screws; 4 ea. 8-32 x 1/2 FH MS; 4 ea. #8 Counter Sunk Washer

FEATURES:

ANSI A156.16 L04261
For Fire Rated Plastic & Wood Covered Doors measuring up to 4’w x 10’h rated up to and including 1 1/2 hours
3/4″ bolt throw, 3/4″ backset; door strength maintained by corner reinforcing plate
Use #570 Dust Proof Strike to prevent dirt blocking bottom strike

Brand	Rockwood
Finishes	BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US15 (619) Satin Nickel, US26 (625) Bright Chrome, US26D (626) Satin Chrome
