Rockwood 580-12 – 12″ Surface Bolt

Usually Ships: 3-5 Business Days
  • UL Listed up to 3 hours (fire-rated)
  • Includes universal top strike and mortise bottom strike
  • Surface Bolt has 1-1/8″ throw

Available Options:

Clear

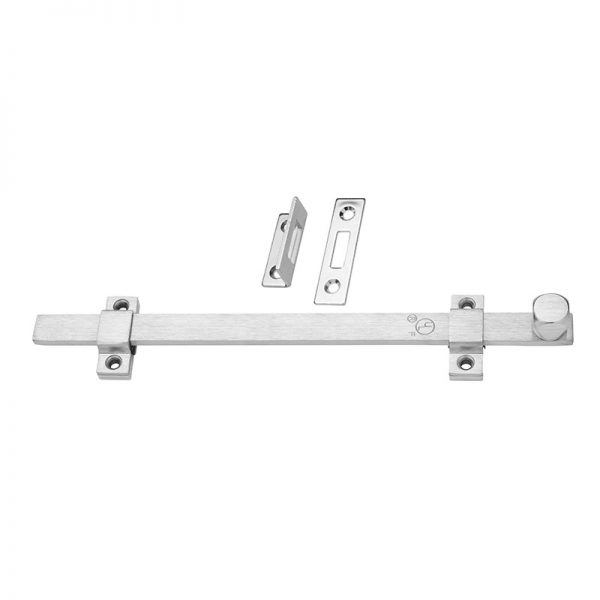

Rockwood 580-12 Surface Bolt, 12″ Bolt Length

The 580 Series Surface Bolts include a universal top strike and a mortise bottom strike. The 580 features bolts that are UL listed for use on inactive leaf of a pair of 3-hour labeled fire doors.

  • Material: Steel
  • Bolt Throw: 1-1/8″
  • Bolt Material: 1/4″ x 3/4″
  • Bolt Length: 12″
  • Fasteners: 8 ea. #10 x 1-1/4″ FH SMS, 8 ea. #10-24 x 1″ FH MS

Features:

  • UL listed for use on inactive leaf of a pair of 3-hour labeled fire doors
  • Includes a universal top strike and a mortise bottom strike
Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

ANSI/BHMA Standard

ANSI A156.16 L04161

Fire Rating

UL listed for 3 hour fire doors, up to 10'0"
