Product Overview
Sargent 10XG37 BHW 32D Grade 1 Heavy Duty Classroom Cylindrical Lock, Ligature Resistant Trim, Standard Cylinder, Satin Stainless Steel Finish

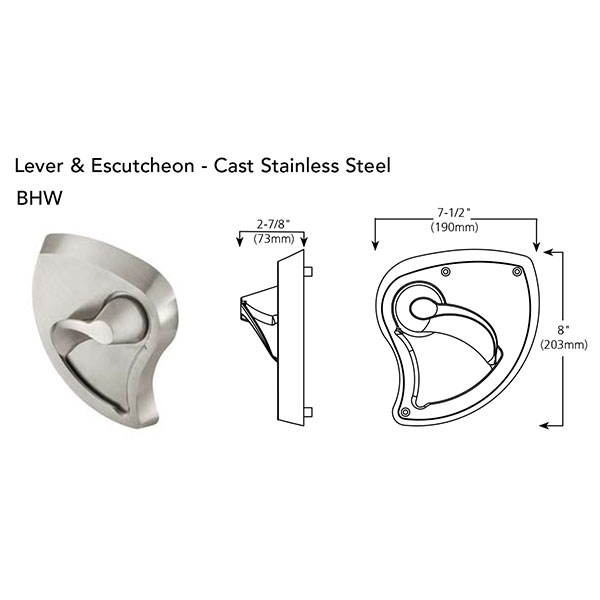

SARGENT’s BHW trim for the 10X Line bored lock provides a ligature resistant feature without the expense of new doors. Plus, the streamlined look and feel of the BHW trim combines aesthetics and performance, contributing to a normative, therapeutic environment of care.
ANSI Function F84 – Deadlocking latch. Latch by either lever unless outside lever is locked by key. Key in outside lever locks or unlocks outside lever and retracts latch. Inside lever always operative
Features
- Recognized by New York State Office of Mental Health (NYS-OMH) for use in high risk areas*
- Aesthetic design with integrated lever and escutcheon
- Uses the ANSI/BHMA Grade 1 10X Line bored lock
- Satin stainless Steel finish (32D) standard
- Locked outside lever is available freewheeling or rigid
- Supplied standard with Torx® security screws
Benefits
- Strong and durable: lock exceeds ANSI/BHMA Grade 1 requirements to withstand abusive environments
- Versatile: can be used on many opening types including high, medium and low risk
- Beautiful: tapered surfaces complement modern design environments
- Cost effective: Bored lock configurations require a lower investment than comparable mortise lock variations
- Easy to use: intuitive operation of lever provides easy access for staff and patients
- Minimizes risk: helps contribute to patient safety with integrated trim design
Applications
- Behavioral Health Units
- Patient Room Doors
- De-escalation Rooms
- Psychiatric Facilities
Models: FW-10XG37-BHW-32D-LH, FW-10XG37-BHW-32D-RH, RGD-10XG37-BHW-32D-LH, RGD-10XG37-BHW-32D-RH, 23FW-10XG37-BHW-32D-LH, 23FW-10XG37-BHW-32D-RH, 23RGD-10XG37-BHW-32D-LH, 23RGD-10XG37-BHW-32D-RH, 25FW-10XG37-BHW-32D-LH, 25FW-10XG37-BHW-32D-RH, 25RGD-10XG37-BHW-32D-LH, 25RGD-10XG37-BHW-32D-RH, FWSC-10XG37-BHW-32D-LH, FWSC-10XG37-BHW-32D-RH, RGDSC-10XG37-BHW-32D-LH, RGDSC-10XG37-BHW-32D-RH, 23FWSC-10XG37-BHW-32D-LH, 23FWSC-10XG37-BHW-32D-RH, 23RGDSC-10XG37-BHW-32D-LH, 23RGDSC-10XG37-BHW-32D-RH, 25FWSC-10XG37-BHW-32D-LH, 25FWSC-10XG37-BHW-32D-RH, 25RGDSC-10XG37-BHW-32D-LH, 25RGDSC-10XG37-BHW-32D-RH
| Brand | |
|---|---|
| Finishes | US32D (630) Satin Stainless Steel |
| Lever Design | BHW |
| Backset | 2-3/4", 3-3/4", 5" |
| Lock Function | Classroom |
| Cylinder Format | Conventional |
| Cylinder & Keys | 6-pin conventional, 0-bitted, with 2 keys |
| Keyway | Sargent LA Keyway, Schlage C Keyway |
| ANSI/BHMA Standard | Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Usage | Heavy Duty |
| Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip |
| Handing | Handed – LH, RH |
| Door Thickness | 1-3/4" to 2" |
| Warranty | 10 Year Limited |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
