Product Overview
Sargent 10XU66-VSLL 10X Line Cylindrical Lever Lock with VSL Trim, Privacy/Bathroom Function, VSL Trim Design, L Lever – 2-3/4″ B.S.
The 10X Line cylindrical lock with status indicators, is the ultimate intersection of security and privacy. Engineered for easy installation in any space, it ensures instant visibility of the door’s lock status. Featuring status indicator windows for optimal visibility. Built on the robust 10X Line lock body, it exceeds Grade 1 standards, making it ideal for high-traffic restrooms, classrooms, or rooms requiring additional privacy.
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Independent return springs enable the lock to exceed ANSI/ BHMA A156.2 Grade 1 cycle requirements without lever sag

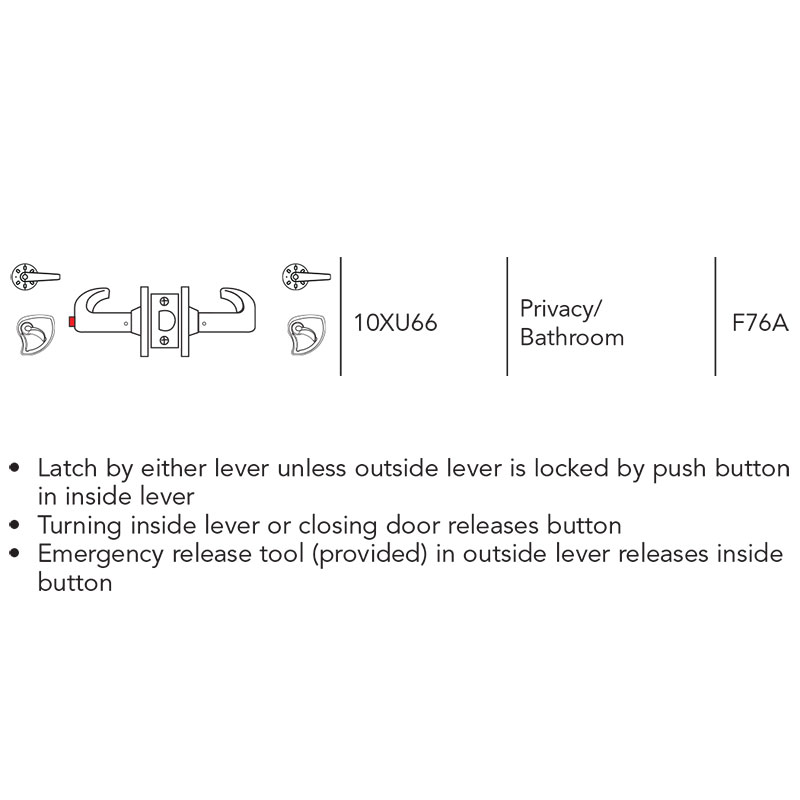

ANSI F76A Privacy
- Latch by either lever unless outside lever is locked by push button in inside lever
- Turning inside lever or closing door releases button
- Emergency release tool (provided) in outside lever releases inside button
Indicator Option Codes
10X Line indicator option codes are designed to convey color and side of door desired in one simple code. To order, specify option code.
- V30: Single Indicator Outside (Icons Only: Green/Red)
- V33: Double Indicator (Icons Only: Green/Red Outside – Green/Red Inside)
- V60: Single Indicator Outside (Icons Only: White/Red)
- V66: Double Indicator (Icons Only: White/Red Outside – White/Red Inside)
Applications
- Heavy-duty commercial and institutional interior and exterior doors
- Offices
- Schools/Universities
- Hospitals
- Manufacturing facilities
| Brand | |
|---|---|
| Finishes | BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome |
| Indicator Option Code | V30 Single Indicator Outside (Green/Red), V33 Double Indicator (Green/Red Outside – Green/Red Inside), V60 Single Indicator Outside (White/Red), V66 Double Indicator (White/Red Outside – White/Red Inside) |
| Lock Function | Privacy with Indicator |
| Usage | Heavy Duty |
| ANSI/BHMA Standard | Certified ANSI A156.2 Series 4000 — Grade 1 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
| Backset | 2-3/4" |
| Lever Design | L |
| Rose Design | VSL |
| Strike | 808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch | Stainless Steel Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Minimum Stile Width | 4-1/2" |
| Warranty | 10 Year Limited |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
