Product Overview
Sargent 28-11G05-LL Grade-1 T-Zone Bored Lock, Entrance or Office Function, L Lever, L Rose
The SARGENT 11 Line has a unique, T-Zone construction providing strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latchbolt.
- Reliable: no through bolts or surface screws to be installed. T-Zone construction prevents the lock from twisting
- Flexible: utilizes one lock body for multiple functions, simplifying facility maintenance
- Secure: torque-resistant construction enables lock to withstand tough environments

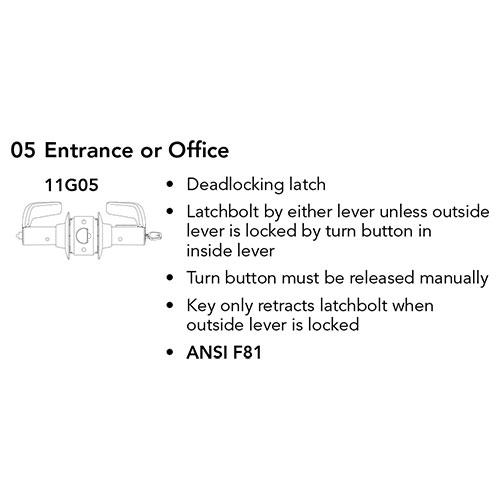

ANSI F81 Entrance or Office
- Deadlocking latch
- Latchbolt by either lever unless outside lever is locked by turn button in inside lever
- Turn button must be released manually
- Key only retracts latchbolt when outside lever is locked
Applications
- High traffic areas – offices, public buildings, hospitals
- High abuse areas – institutions, schools, retail
Brand | |
---|---|
Finishes | BSP Black Suede Powder Coat, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome |
Lock Function | Entry (Entrance), Office |
Usage | Heavy Duty |
ANSI/BHMA Standard | Certified ANSI A156.2 Series 4000 — Grade 1 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
Keyway | Sargent LA Keyway |
Backset | 2-3/4" |
Lever Design | L |
Rose Design | L |
Strike | 808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
Latch | Stainless steel bolt 7/8" dia. x 1/2" throw |
Handing | Non-Handed |
Door Thickness | 1-3/4" to 2" |
Minimum Stile Width | 4-1/2" |
Warranty | 10 Year Limited |
