Sargent 28-65G05-KL Entry/Office Lever Lock

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified Grade 2
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F109 Entrance or Office

Available Options:

Sargent 28-65G05 Grade-2 Cylindrical Lock, Entrance or Office Function, L Lever, K Rose

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards.

  • Exceeds ANSI/BHMA A156.2 Grade 2 requirements
  • 28 Option: 4-7/8″ curved lip strike

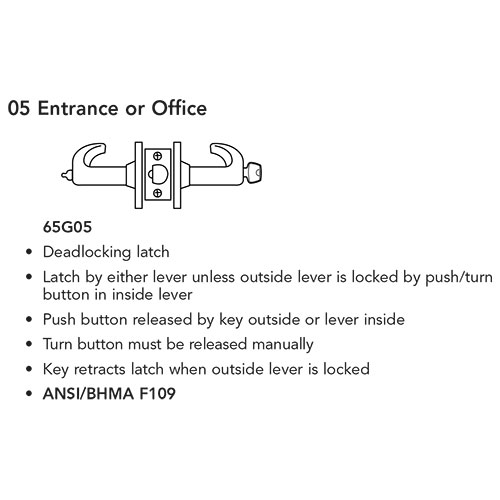

ANSI F109 Entrance or Office

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked

Applications

  • Standard duty commercial doors
  • Offices
  • Public buildings

codes

Brand

Finishes

BSP Black Suede Powder Coat, US3 Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

Lock Function

Entry (Entrance), Office

Usage

Medium Duty

ANSI/BHMA Standard

Certified A156.2 Series 4000, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Fire Rated – UL10C – Positive Pressure

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Sargent LA Keyway

Lever Design

L

Rose Design

K

Backset

2-3/4"

Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"

Latch

Deadlocking/Guarded Latch – 1/2” throw, 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"
