Product Overview
Sargent 28-65G37 Grade-2 Cylindrical Lock, Classroom Function, L Lever, K Rose
Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards.
- Exceeds ANSI/BHMA A156.2 Grade 2 requirements
- 28 Option: 4-7/8″ curved lip strike

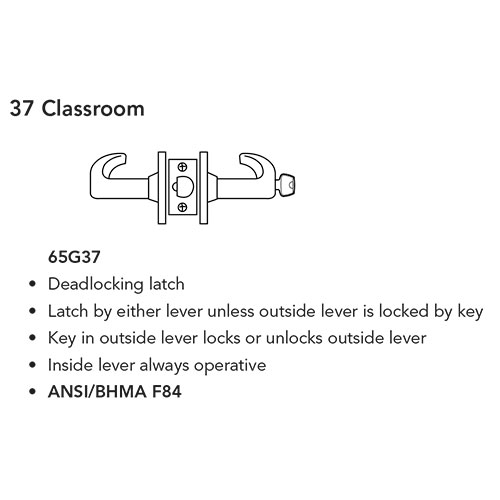

ANSI F84 Classroom
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever and retracts latch
- Inside lever always operative
Applications
- Standard duty commercial doors
- Offices
- Public buildings
| Brand | |
|---|---|
| Finishes | BSP Black Suede Powder Coat, US3 Bright Brass, US4 (606) Satin Brass, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome |
| Lock Function | Classroom |
| Usage | Medium Duty |
| ANSI/BHMA Standard | Certified A156.2 Series 4000, Grade 2 |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Fire Rating | Fire Rated – UL10C – Positive Pressure |
| Cylinder & Keys | 6-pin conventional, keyed different, with 2 keys |
| Keyway | Sargent LA Keyway |
| Lever Design | L |
| Rose Design | K |
| Backset | 2-3/4" |
| Strike | 808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4" |
| Latch | Deadlocking/Guarded Latch – 1/2” throw, 1-1/8" x 2-1/4" face |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" to 1-3/4" |
