Sargent 281-P10 Door Closer with Heavy Duty Parallel Arm

Usually Ships: 1-2 Business Days

Heavy Duty, BHMA/ANSI Certified Grade-1
Adjustable Spring Size 1-6
Parallel Arm Mount

Available Options:

Finish

Clear

Quantity:

Sargent 281 Series Cast Iron Closer with Heavy Duty Parallel Arm, 281-P10-TB

Designed to meet the needs of facilities maintaining “cast iron” specifications, the 281 Series Powerglide® Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

P10 – Heavy Duty Parallel Arm
TB – Packed w/thru bolts (TB), wood & machine screws
Operates effectively in extreme heat and cold without readjustment
Meets ADA requirements in all applications
Retrofits discontinued SARGENT 1250/1251

Brand	Sargent
Finishes	EP/691 Sprayed Satin Bronze, EAB/696 Sprayed Brass Enamel, EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel, BSP Black Suede Powder Coat
Usage	Heavy Duty

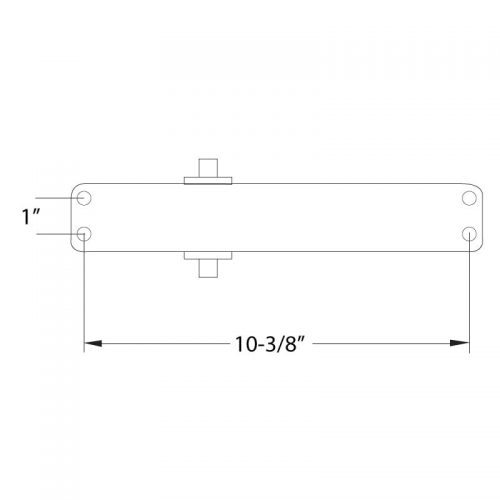

Templating (Hole Pattern)	1" x 10-3/8"
Mounting Options	Parallel Arm (Push Side)
ANSI/BHMA Standard	ANSI/BHMA Grade 1 156.4 standards
Fire Rating	UL and cUL Listed – up to 3 Hours
ADA Compliance	Meets ADA requirements – A117.1 Accessibility Code
Fasteners	Packed w/Thru Bolts (TB), Wood & Machine Screws
Body Construction	Cast Iron Body
Fluid	All Weather Fluid
Cover	Full Cover
Spring Size	Adjustable Spring Size 1-6
Handing	Non-Handed
Warranty	10 Year Limited
