Sargent 34 Rim Cylinder, LA Keyway

Usually Ships: 1-2 Business Days
  • 6-Pin Rim Cylinder
  • For use with Exit Device Trim
  • LA Keyway w/ 2 keys

Available Options:

Product Overview

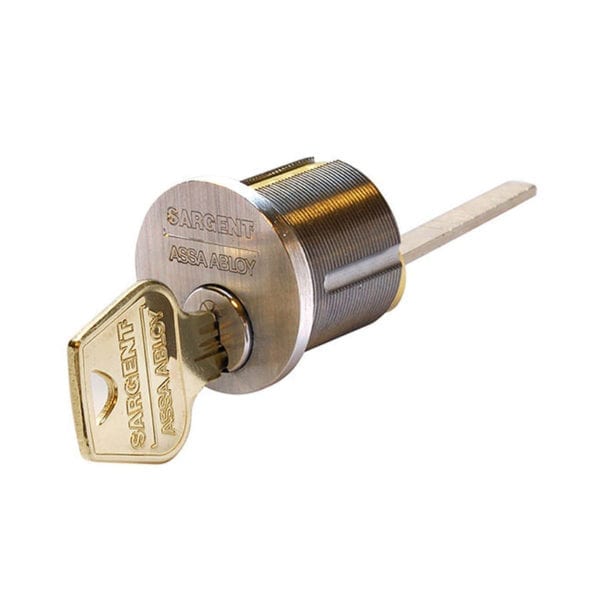

Sargent #34 Rim Cylinder, LA Keyway

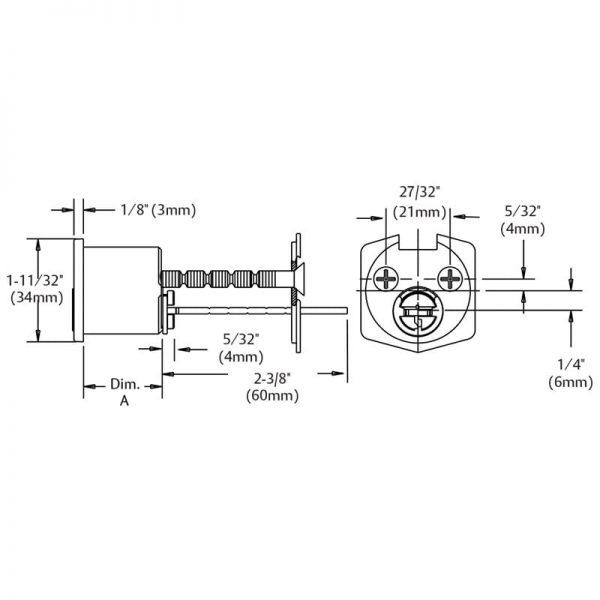

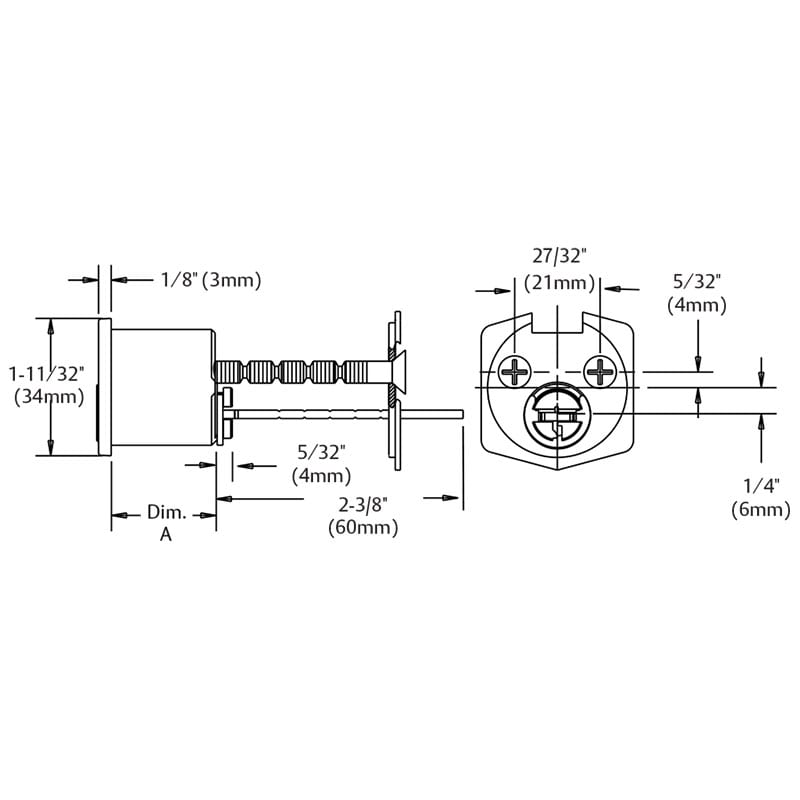

  • 27/32″ (21mm) screw pattern for through-bolted SARGENT exit devices
  • Cylinder: Solid brass
  • Furnished standard with No. 97 rosette and compression spring, “break-off” screws and back plate
  • 6 pin standard
  • Horizontal tail piece only
Brand

Finishes

BSP Black Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US9 (611) Polished Bronze, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US32 (629) Bright Stainless Steel, US32D (630) Satin Stainless Steel
Cylinder Type

Rim Cylinder
Keyway

Sargent LA Keyway
