Sargent PE8888/PE8810 Panic Rim Exit Device, Multi-Function

Usually Ships: 30-45 Business Days
  • Heavy-Duty, ANSI/BHMA A156.3 Grade 1 certified
  • Designed for high use and abuse applications
  • Exit Only (trim sold separately)

Available Options:

Product Overview

Sargent PE80 Series, PE8888/PE8810 Grade 1 Rim Exit Bar, Wide Stile Pushpad, Multi-Function, Exit Only

The PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features. Ideal for environments that require maximum strength and durable security solutions, all configurations exceed ANSI/BHMA Grade 1 requirements.

  • Exit Only (Sargent Exit Device Trim sold separately)
  • Universal, multi-function rim exit device
  • Device & trim sold separately; easy to mix and match

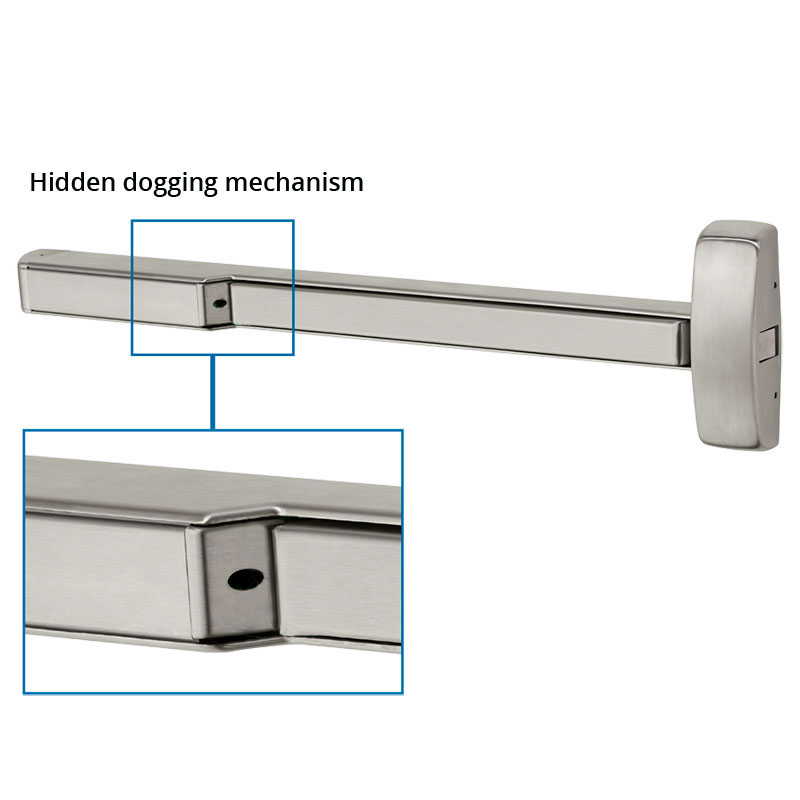

  • Hidden dogging mechanism
  • Flush pushbar and rail carrier design to minimize catch points
  • No visible fasteners on rail assembly
  • Flush end cap standard
  • Designed for standard width stile applications on wood and metal doors
  • 7 functions available as determined by the trim function
  • UL305 (Panic) Listed

Brand

Finishes

BSP/32D Mixed Finish, Black Suede Powder Coat w/ Satin Stainless Steel Push Bar, 32D/BSP Mixed Finish, Satin Stainless Steel w/ Black Suede Powder Coat Push Bar, BSP Black Suede Powder Coat, WSP White Suede Powder Coat, US3 (605) Bright Brass, US4 (606) Satin Brass, US9 (611) Polished Bronze, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US32 (629) Bright Stainless Steel, US32D (630) Satin Stainless Steel
Length

E – 32" (24" to 32" Doors), F – 36" (for 33" to 36" Doors), J – 42" (for 37" to 42" Doors), G – 48" (for 43" to 48" Doors)
Stile Type

Wide (Standard)
ANSI/BHMA Standard

ANSI/BHMA A156.3 – Grade 1
Usage

Heavy Duty
Fire Rating

None
Handing

Non Handed – Completely Reversible
Dogging Feature

Hidden dogging mechanism, half turn hex
Latchbolt

Stainless steel 3/4” throw
Strike

649 Strike supplied standard
Touchbar Projection

2.88"
Trim

None – Exit Only (Outside Trim Sold Separately)
Door Applications

1-3/4" Metal and Wood Doors
Warranty

10 Years
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
