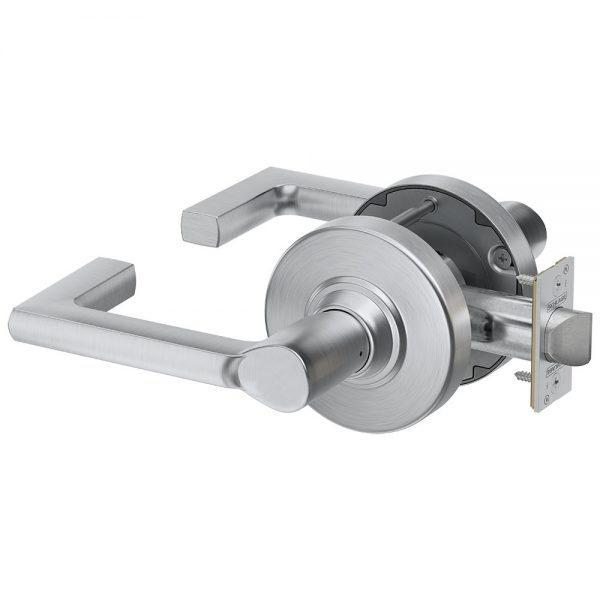

Schlage ALX10 LON (Longitude) Passage Lever

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Product Overview

Schlage ALX10 LON Grade-2 Cylindrical Lever Lock, Passage Function, Longitude Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

ANSI Function F75 – No key; plain lever on both sides; spring latch. Both levers always unlocked.

  • For medium to heavy-duty commercial door applications
  • Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Passage
Lever Design

LON (Longitude)
Backset

2-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
ANSI/BHMA Standard

Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
CA Fire Code

All levers with a return to door of 1 ⁄2" (64 mm) or less comply
FL Building Code

ASTM E330, E1886, E1996 and Miami Dade (TAS 201, 202, 203) requirements for hurricanes
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Warranty

10 Year Limited
