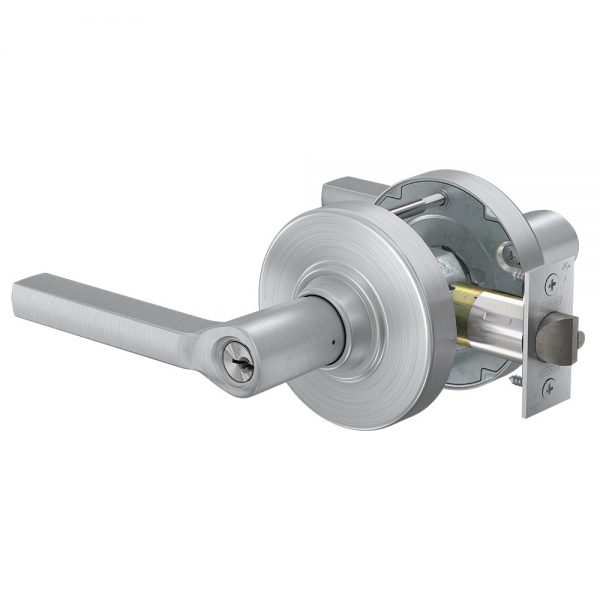

Schlage ALX70P LAT (Latitude) Classroom Lever Lock

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • Lock/Unlock by key – inside always unlocked
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Schlage ALX70P LAT Grade-2 Cylindrical Lever Lock, Classroom Function, Latitude Lever

Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security, and functionality when and where you need it.

ANSI Function F84 – Key cylinder outside; plain lever inside; deadlatch. Key in outside lever locks or unlocks outside lever. Inside lever always free for immediate egress.

  • For medium to heavy-duty commercial door applications
  • Field selectable Vandlgard® feature – Converts to ALXV70
  • Accommodates 1-3/8″ to 1-3/4″ door thickness with minimal chassis adjustment
  • Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble
  • Grade 1 compression springs

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Classroom
Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Lever Design

LAT (Latitude)
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
ANSI/BHMA Standard

Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Warranty

10 Year Limited
Schlage_ALX_Installation_Instructions Schlage_ALX_Series_Installation_Instructions_Spanish
