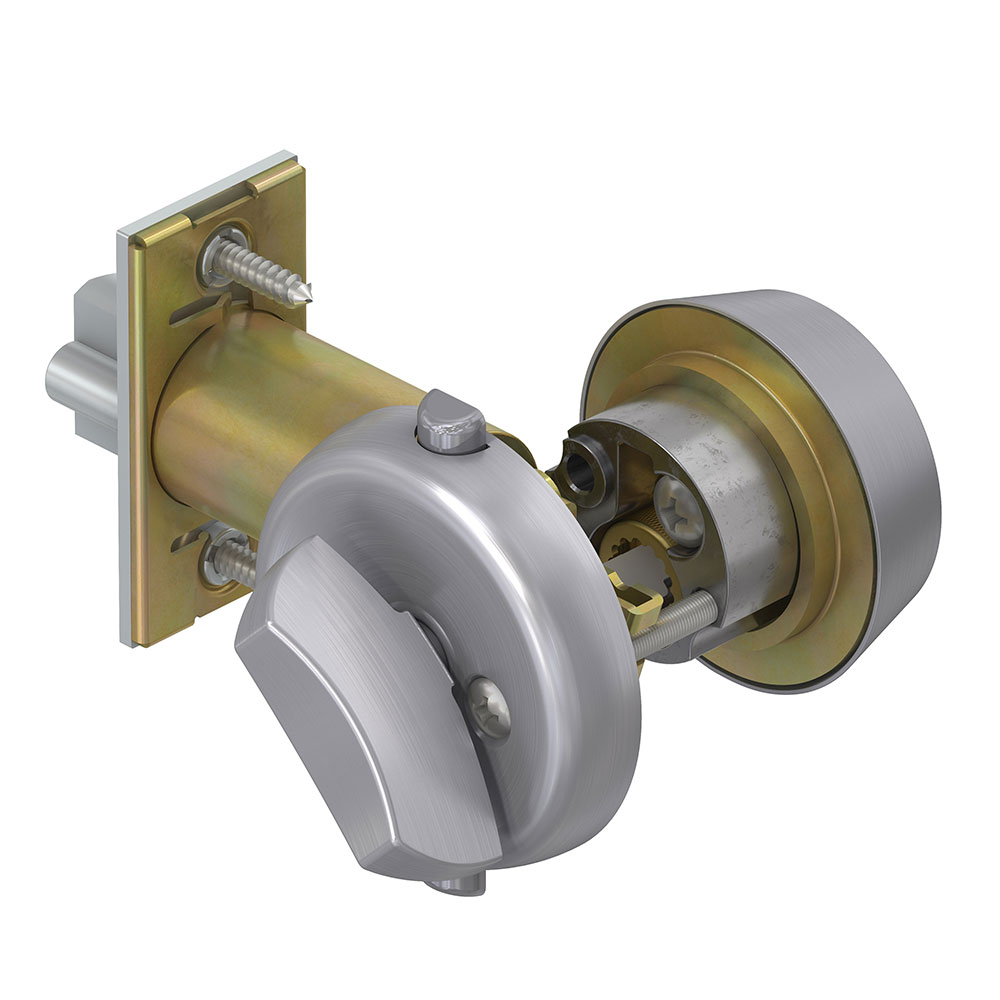

Schlage B250J Single Cylinder Deadlatch, Less Full Size Interchangeable Core

Schlage B250J Grade 2 Single Cylinder Deadlatch (Night Latch), Prepped for Full Size Interchangeable Core, Less Core

Ideally suited for pool, apartment and condominium gates, utility panels, and pipe chases, the Schlage B250 Series is tough, reliable and has a proven design that has been the industry standard for decades.

The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.

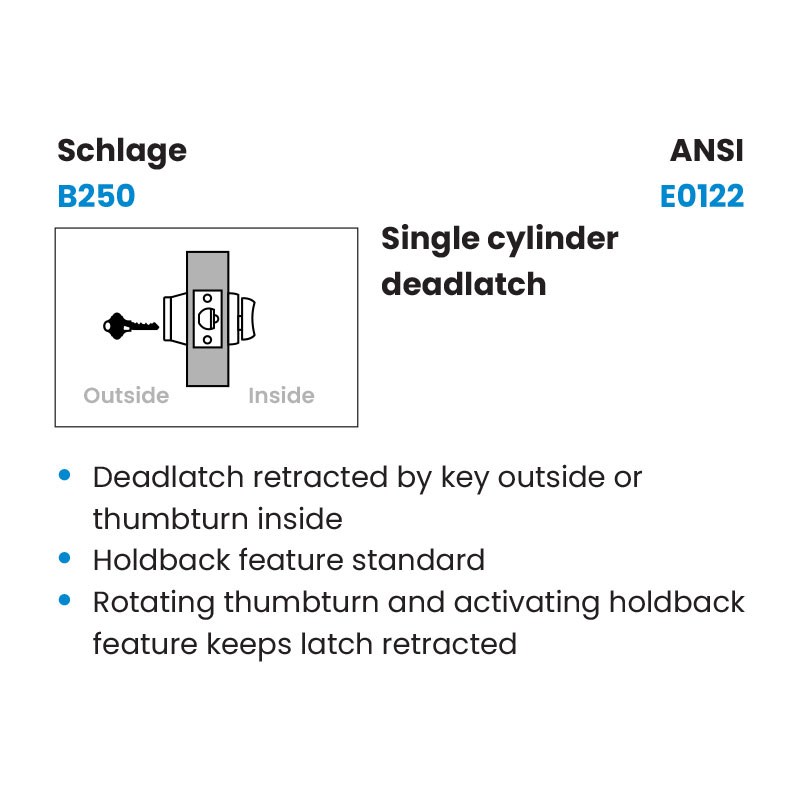

ANSI Function E0122: Deadlatch retracted by key outside or thumbturn inside. Holdback feature standard. Rotating thumbturn and activating holdback feature keeps latch retracted

• Exceeds ANSI/BHMA Grade 2 operational and security standards
• 9/16″ throw deadlatch resists prying attacks and “shimming” of the latch
• Metal wood frame reinforcer uses 3″ screws to anchor deep into wood door frame to protect against kick-in attacks
• Free spinning, tapered cylinder collar with security insert resists wrenching and prying
• UL 437 listed option resists drilling and physical attack on the cylinder
• 1″ housing diameter; 9/16″ throw
• Backset: 2-3/8″ (60 mm) fixed backset standard; 2-3/4″ backset optional
• Faceplate: square corner 1-1⁄8″ x 2-1/4″ (29 mm x 57 mm) standard
• Strike: 1-1/8″ x 2-3/4″ T-strike with square corners and box standard
• Strike lip length: 1-1⁄8″ (29 mm) standard
