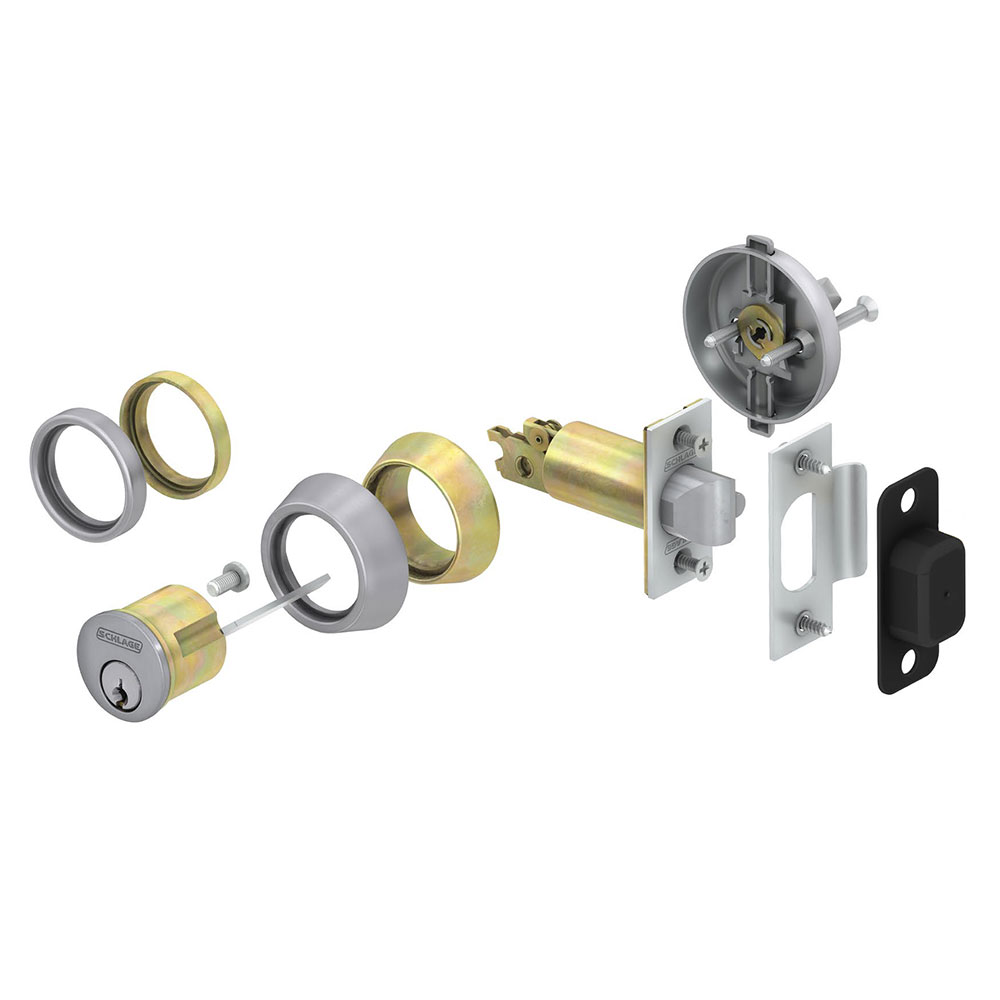

Schlage B250P6 Single Cylinder Deadlatch

Schlage B250P6 Grade 2 Single Cylinder Deadlatch (Night Latch), Conventional Cylinder, Schlage C Keyway

Ideally suited for pool, apartment and condominium gates, utility panels, and pipe chases, the Schlage B250 Series is tough, reliable and has a proven design that has been the industry standard for decades.

The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.

ANSI Function E0122: Deadlatch retracted by key outside or thumbturn inside. Holdback feature standard. Rotating thumbturn and activating holdback feature keeps latch retracted

• Exceeds ANSI/BHMA Grade 2 operational and security standards
• 9/16″ throw deadlatch resists prying attacks and “shimming” of the latch
• Metal wood frame reinforcer uses 3″ screws to anchor deep into wood door frame to protect against kick-in attacks
• Free spinning, tapered cylinder collar with security insert resists wrenching and prying
• UL 437 listed option resists drilling and physical attack on the cylinder
• 1″ housing diameter; 9/16″ throw
• Backset: 2-3/8″ (60 mm) fixed backset standard; 2-3/4″ backset optional
• Faceplate: square corner 1-1⁄8″ x 2-1/4″ (29 mm x 57 mm) standard
• Strike: 1-1/8″ x 2-3/4″ T-strike with square corners and box standard
• Strike lip length: 1-1⁄8″ (29 mm) standard
