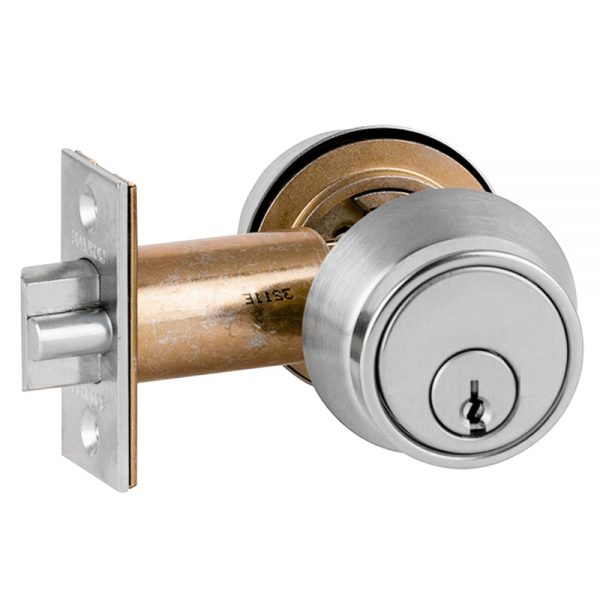

Schlage B252P6 Double Cylinder Deadlatch

Schlage B252P6 Grade 2 Double Cylinder Deadlatch, Conventional Cylinder, Schlage C Keyway

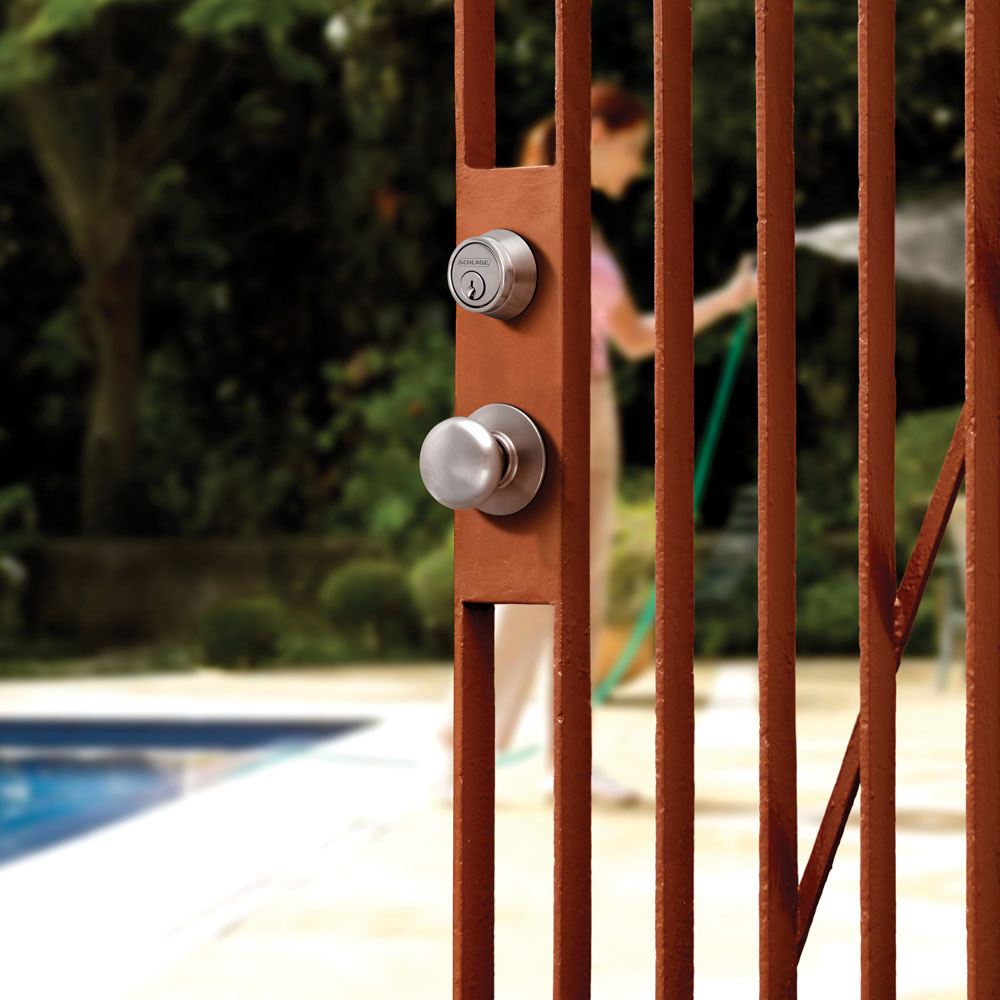

Ideally suited for pool, apartment and condominium gates, utility panels, and pipe chases, the Schlage B250 Series is tough, reliable and has a proven design that has been the industry standard for decades.

The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where relocking is essential to security.

ANSI Function E0112: Deadlatch retracted by key either side. No holdback.

Caution: Double cylinder locks on residences and any door, in any structure, which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

• Exceeds ANSI/BHMA Grade 2 operational and security standards
• 9/16″ throw deadlatch resists prying attacks and “shimming” of the latch
• Metal wood frame reinforcer uses 3″ screws to anchor deep into wood door frame to protect against kick-in attacks
• Free spinning, tapered cylinder collar with security insert resists wrenching and prying
• UL 437 listed option resists drilling and physical attack on the cylinder
• 1″ housing diameter; 9/16″ throw
• Backset: 2-3/8″ (60 mm) fixed backset standard; 2-3/4″ backset optional
• Faceplate: square corner 1-1⁄8″ x 2-1/4″ (29 mm x 57 mm) standard
• Strike: 1-1/8″ x 2-3/4″ T-strike with square corners and box standard
• Strike lip length: 1-1⁄8″ (29 mm) standard
