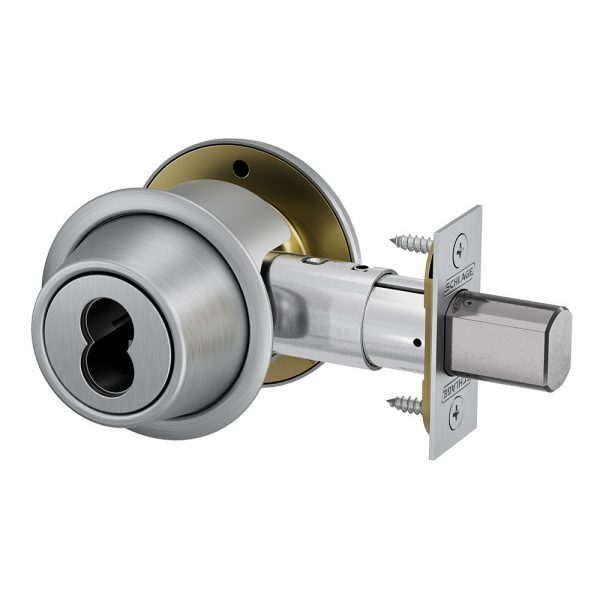

Schlage B561B One-Way Deadbolt, Cylinder Only x Blank Plate, Less Small Format Interchangeable Core

Usually Ships: 1-2 Business Days
  • ANSI Function E0162
  • Cylinder only x blank plate
  • (SFIC) small format interchangeable core prep (less core)

Available Options:

Product Overview

Schlage B561B One-Way Deadbolt, Cylinder Only x Blank Plate, SFIC Prep, Less Core, Adjustable 2-3/8″ and 2-3/4″ Backset

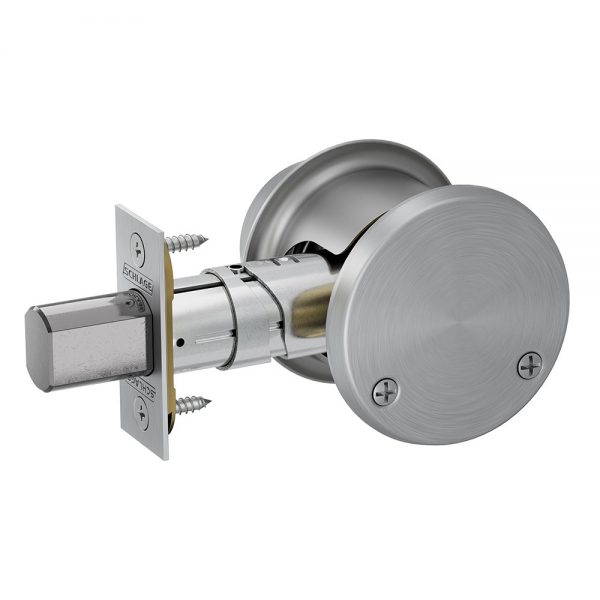

ANSI Function E0162: Deadbolt thrown or retracted by key outside. Blank plate with exposed screws inside.

  • SFIC (small format interchangeable core) core sold separately
  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome
Deadbolt Type

Cylinder Outside Only
Cylinder

Small Format Interchangeable Core (SFIC) Cylinder (Less Core)
ANSI Function

E0162
ANSI/BHMA Standard

ANSI A156.36, Grade 2. When installed with SFIC cylinder, Grade 3.
Usage

Medium Duty
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

None
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
