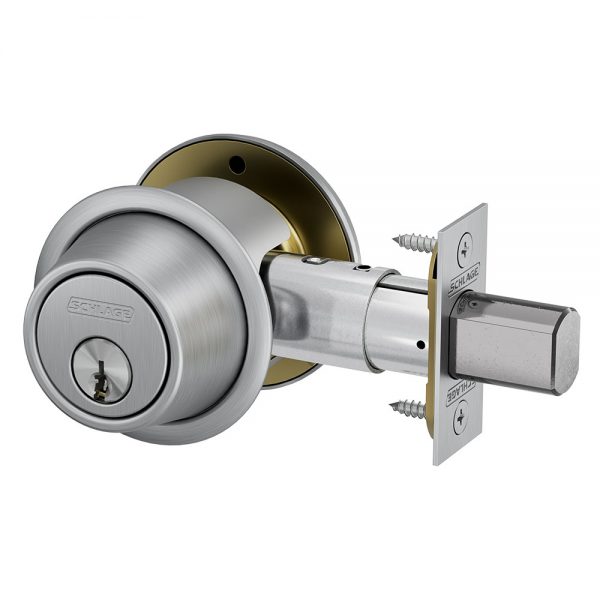

Schlage B561P One-Way Deadbolt, Cylinder Only x Blank Plate

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.5 Grade 2 certified
  • Cylinder only x blank plate
  • 2-3/8″ to 2-3/4″ adjustable backset

Available Options:

Product Overview

Schlage B561P Grade 2 One-Way Deadbolt Lock (Cylinder Only x Blank Plate), Conventional Cylinder, Schlage C Keyway, Adjustable 2-3/8″ and 2-3/4″ Backset

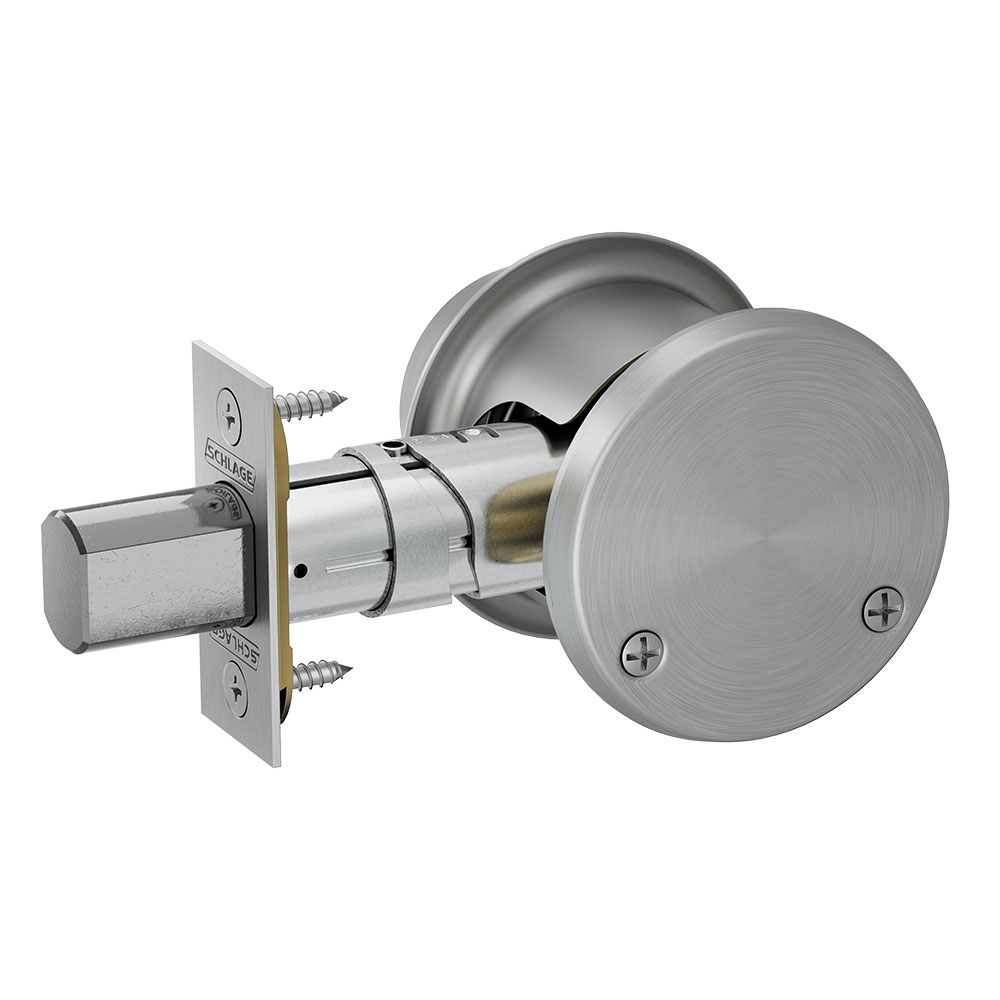

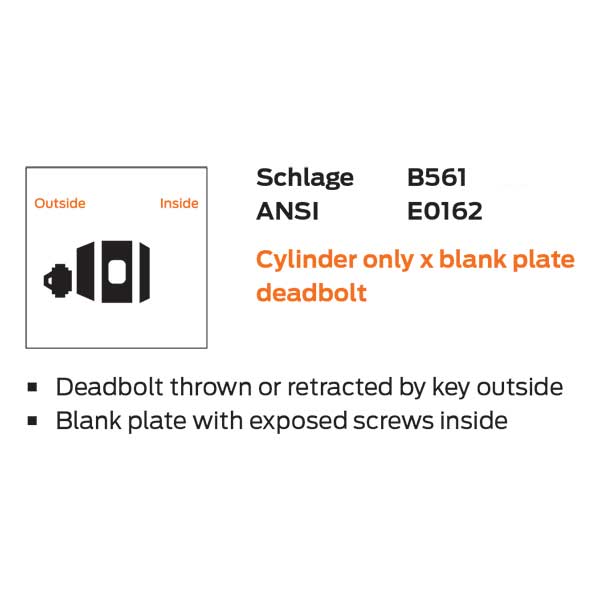

ANSI Function E0162: Deadbolt thrown or retracted by key outside. Blank plate with exposed screws inside.

  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Deadbolt Type

Blank Plate Inside x Cylinder
ANSI Function

E0162
ANSI/BHMA Standard

ANSI A156.36, Grade 2
ANSI Grade

ANSI Grade 2
Usage

Medium Duty
Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

None
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
