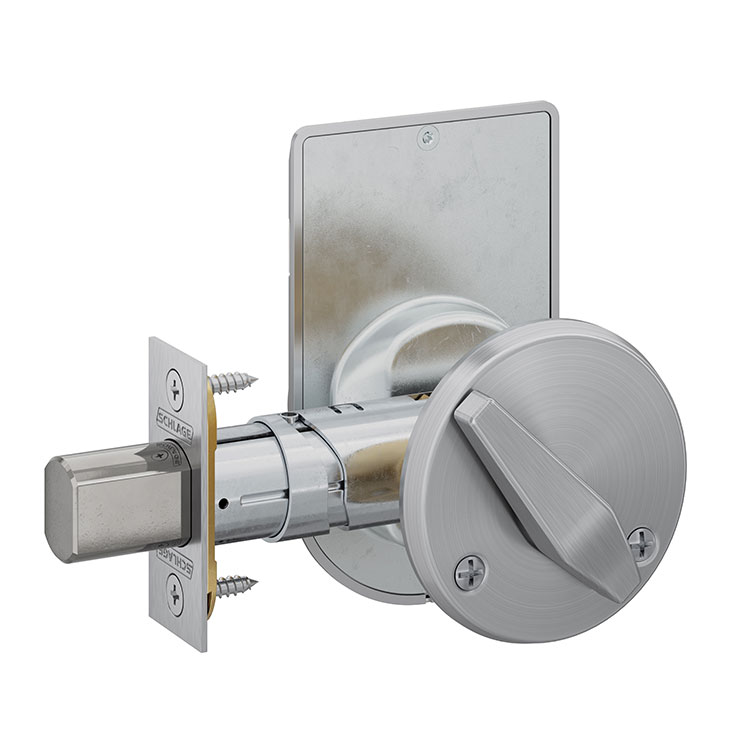

Schlage B500-626_OSOCC_INT
B572
SCHLAGE_B572_626_OSOCC_EXT
Schlage B500-626_OSOCC_INT
B572

Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

Usually Ships: 1-2 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • ADA compliant thumbturn

Available Options:

Product Overview

Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8″ and 2-3/4″ Backset

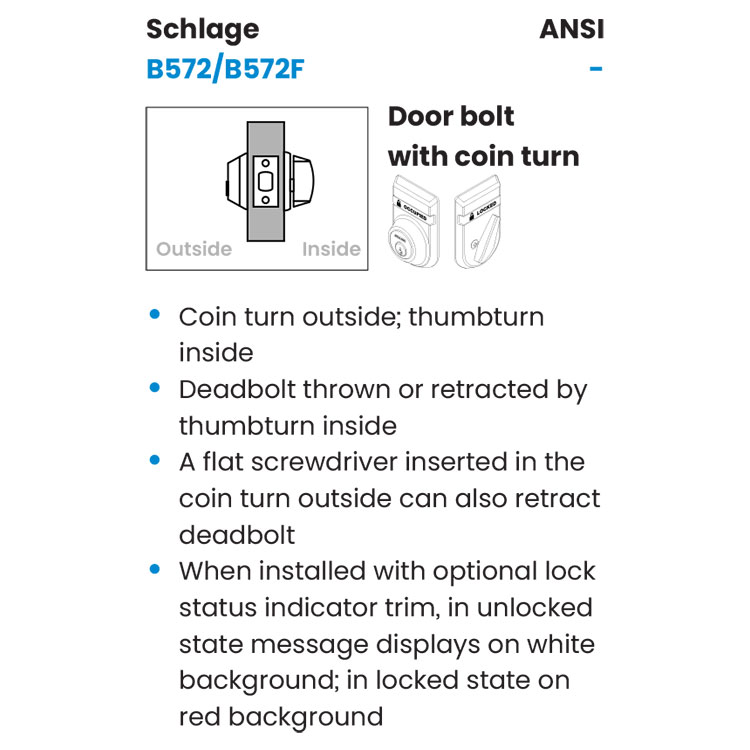

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • Perfect for commercial restroom doors

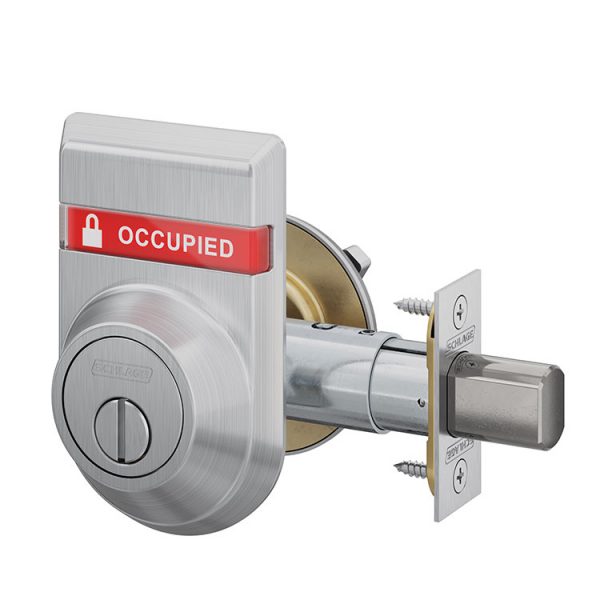

  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Adjustable for 2-3/8″ or 2-3/4″ backset
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Deadbolt Type

Indicator
ANSI/BHMA Standard

ANSI A156.36, Grade 2
ANSI Grade

ANSI Grade 2
Usage

Medium Duty
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Door Thickness

1-3/4" to 1-7/8”
Fire Rating

None
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
