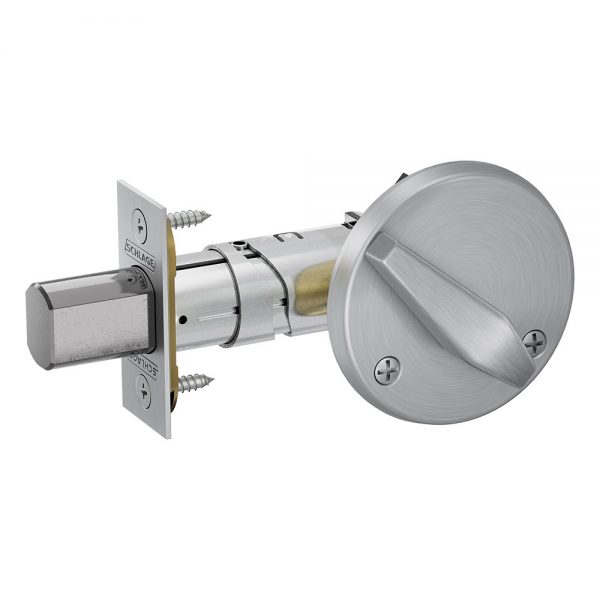

Schlage B580 Door Bolt with Trim, Inside Turn Only

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.5 Grade 2 certified
  • ANSI Function E0192 – Inside turn only
  • 2-3/8″ to 2-3/4″ adjustable backset

Available Options:

Product Overview

Schlage B580 Grade 2 Door Bolt, Inside Turn, Adjustable 2-3/8″ and 2-3/4″ Backset

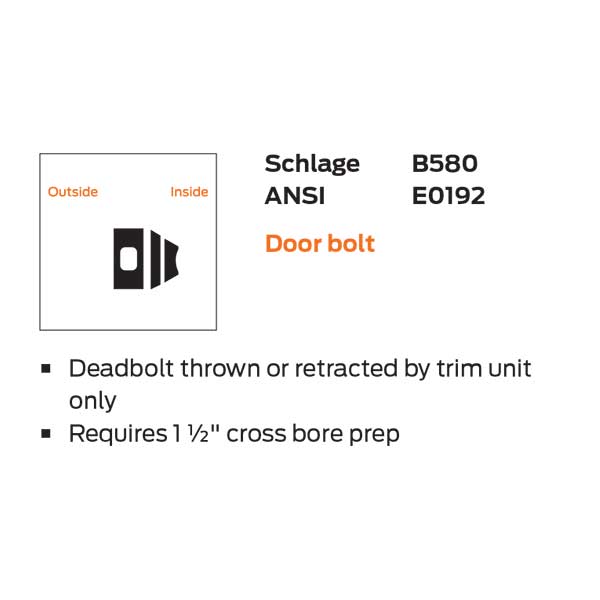

ANSI Function E0192: Deadbolt thrown or retracted by trim unit only. Requires 1 ½” cross bore prep.

  • 2-3/8″ to 2-3/4″ Adjustable Backset (1″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Deadbolt Type

Turn Inside Only
ANSI Function

E0192
ANSI/BHMA Standard

ANSI A156.36, Grade 2
ANSI Grade

ANSI Grade 2
Usage

Medium Duty
Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

None
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
