Product Overview

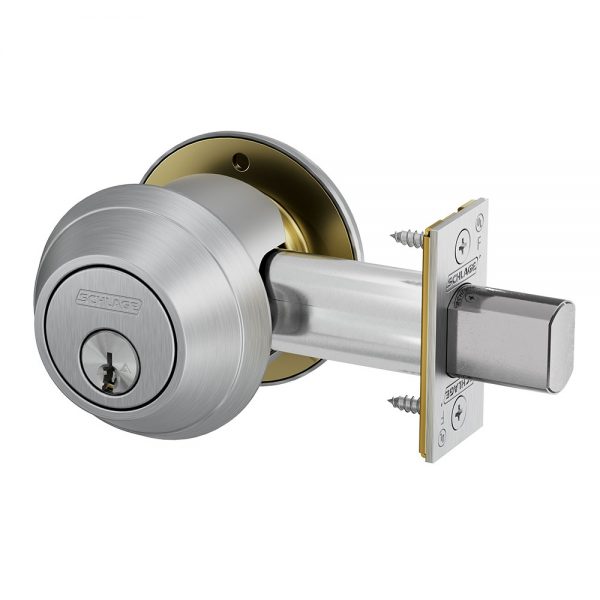

Schlage B661P Grade 1 One-Way Deadbolt, Cylinder Outside x Blank Plate Inside, 2-3/4″ Backset

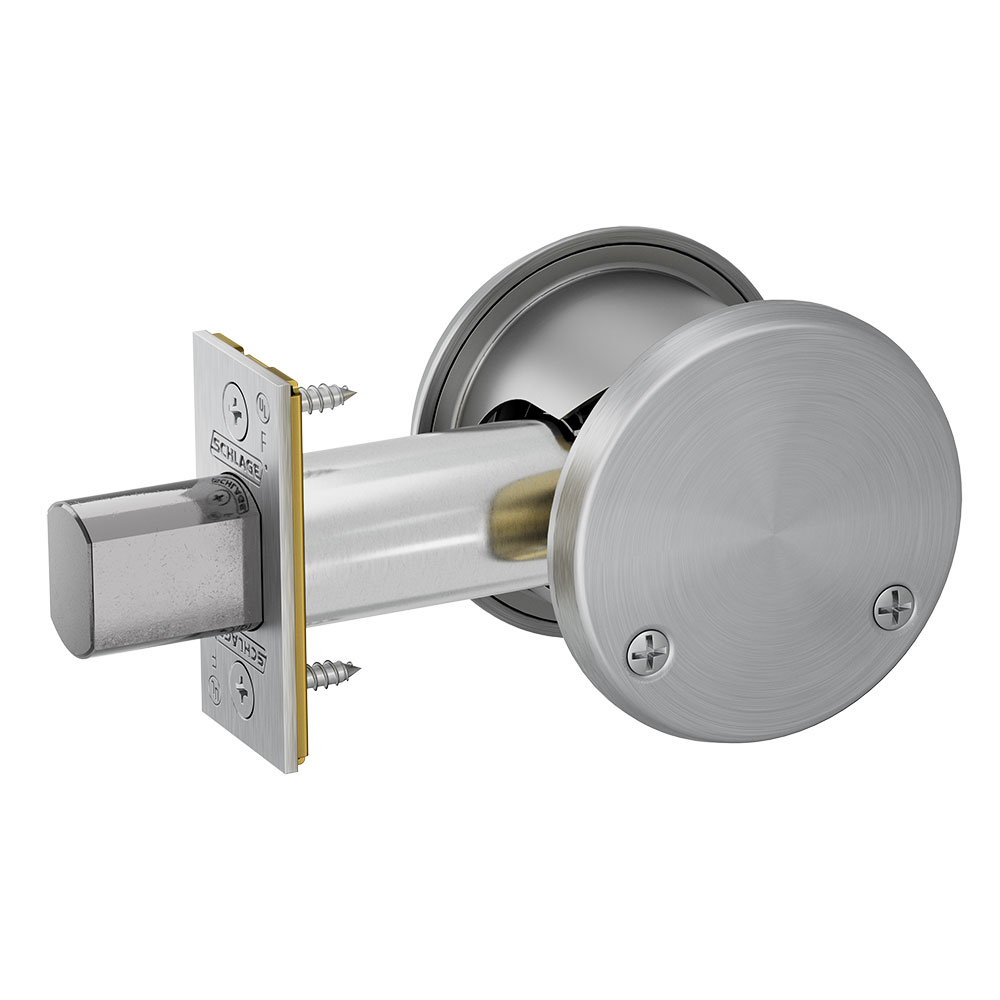

ANSI Function: E0161– Deadbolt thrown or retracted by key outside. Blank plate with exposed screws inside.
- 1″ throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
- Metal shield protects bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack
| Brand | |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze |
| Deadbolt Type | Blank Plate Inside x Cylinder |
| ANSI Function | E0161 |
| ANSI/BHMA Standard | ANSI A156.36, Grade 1 |
| ANSI Grade | ANSI Grade 1 |
| Cylinder & Keys | 5-pin or 6-pin conventional, keyed different, with 2 keys |
| Keyway | Schlage C Keyway, Schlage S123 Keyway |
| Usage | Heavy Duty |
| Bolt | 1" throw bolt, 1-1/8" x 2-1/4" square corner face plate |
| Backset | 2-3/4" |
| Strike | 1-1/8” x 2-3/4“ square corner |
| Fire Rating | UL Listed for “A” Label 3 Hour Fire Doors |
| Door Thickness | 1-3/4" to 2" |
