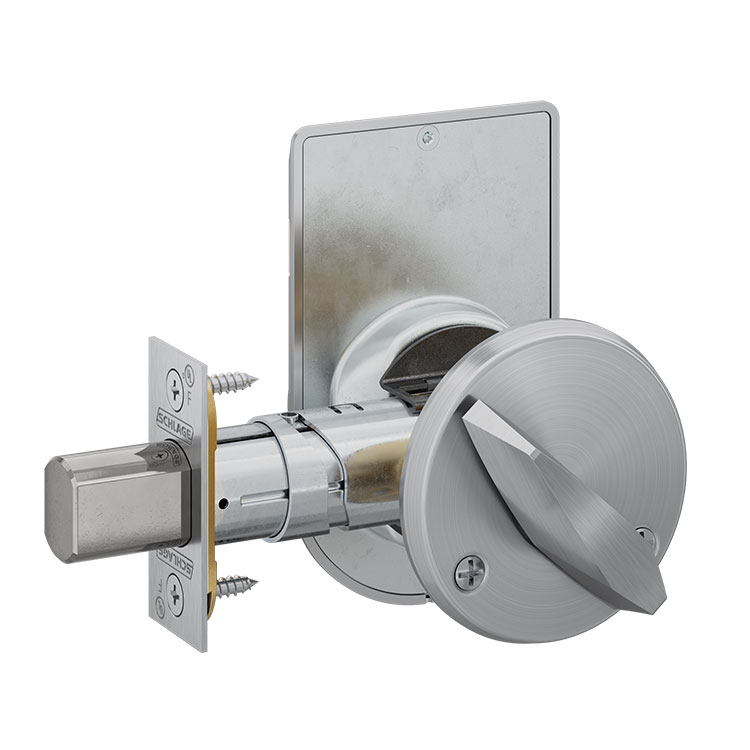

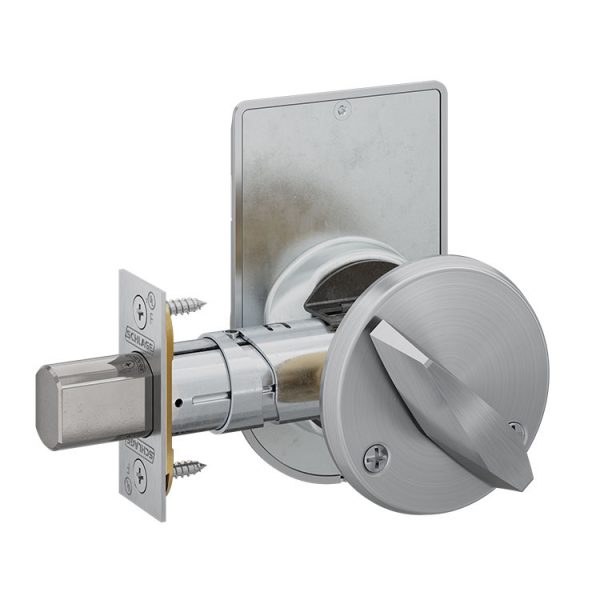

Schlage B672 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

Usually Ships: 20-30 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • ADA compliant thumbturn

Available Options:

Product Overview

Schlage B672 Grade-1 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, 2-3/4″ Backset

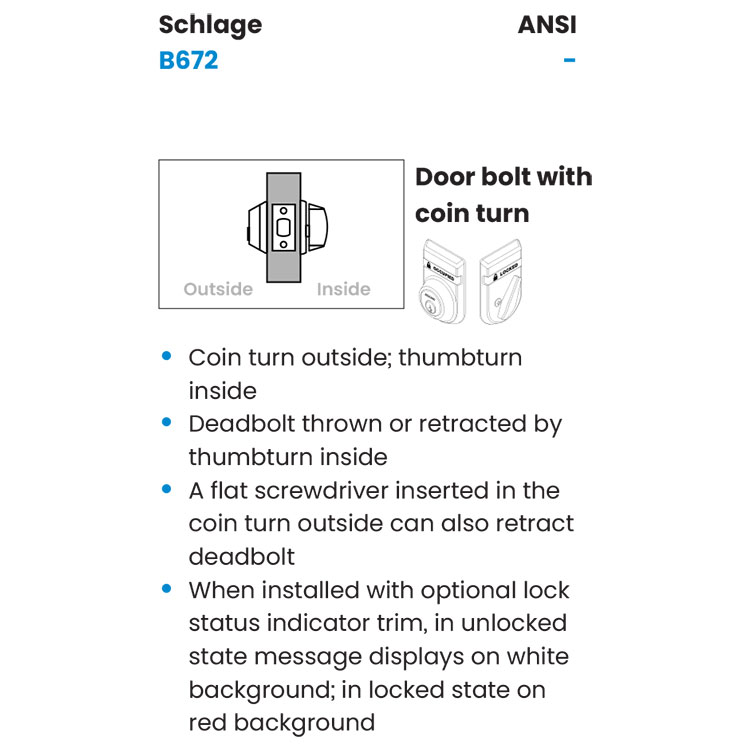

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • The only OEM Grade 1, keyed deadbolt indication option

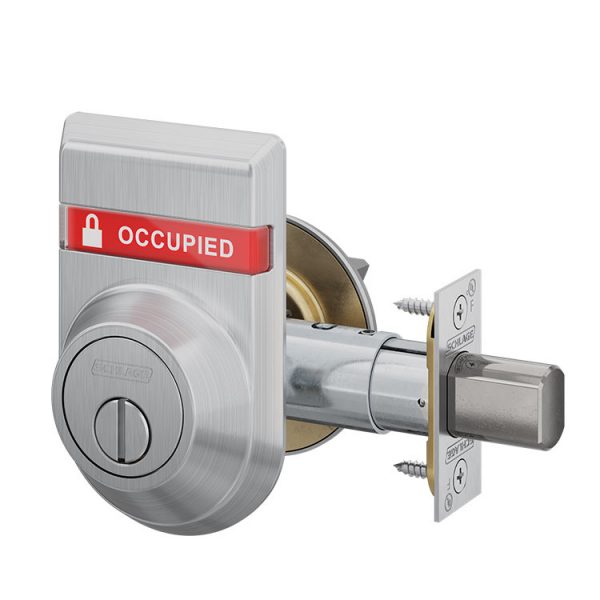

  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Can be suited with virtually all Schlage levers and knobs
  • ANSI/BHMA A156.36-2020, Grade 1
  • UL listed, fire-rated up to 3 hours
  • 3-year limited mechanical warranty
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Deadbolt Type

Indicator
ANSI/BHMA Standard

ANSI/BHMA A156.36-2020, Grade 1
Usage

Heavy Duty
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Door Thickness

1-3/4" to 1-7/8”
Fire Rating

UL 10C listed for 3-hour fire door
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets BAA – Buy American Act
