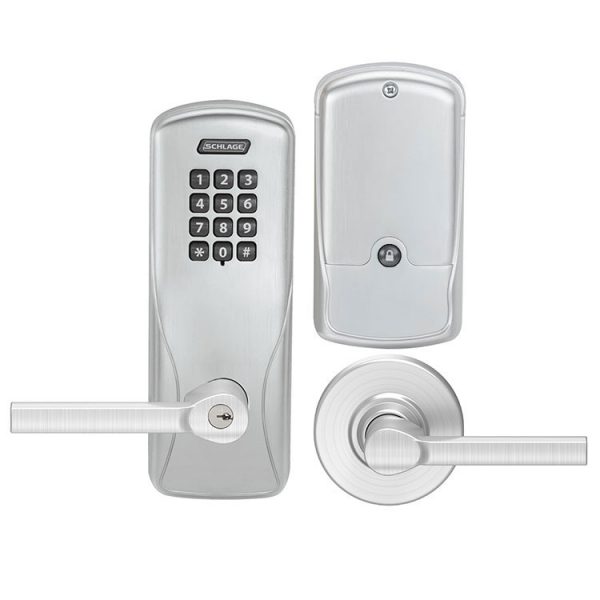

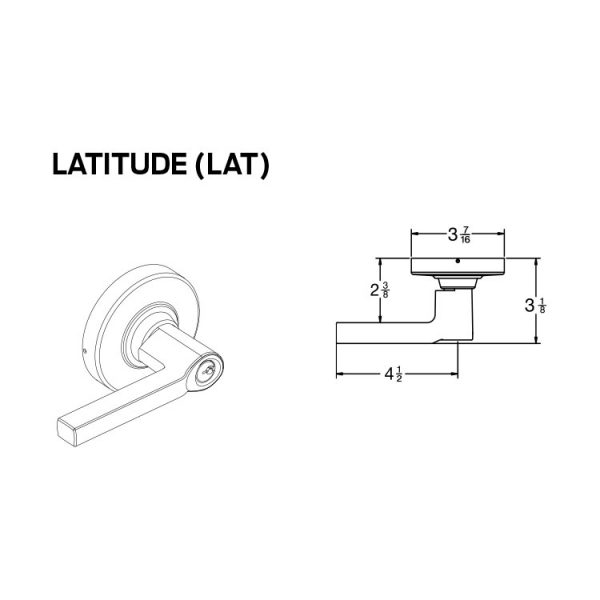

Schlage CO-100-CY-40-KP-LAT Electronic Keypad Lock, Privacy Function, Latitude Lever

Schlage CO-100-CY-40-KP-LAT Grade 1 Standalone Electronic Cylindrical Lock, Privacy Function, Keypad Reader, Latitude Lever, With Schlage Standard Cylinder

This simple, standalone keypad-entry lock is designed for up to 500 unique users using PIN codes only. The CO-100 is an economic alternative when trying to minimize key distribution. User rights are stored on the lock with unique PINs assigned to each user. This minimizes the number of mechanical keys issued, protecting the integrity of a facility’s key system. Administrator level users program the CO-100 using its keypad at the door to add or delete user PINs or change preferences or functions at any time.

Privacy Function (40): Lockset is normally secure. Inside lever always allows free egress. Interior pushbutton on inside housing may be used to select a privacy status. The interior pushbutton will disable normal electronic access from the exterior. Opening the door or pressing the interior pushbutton a second time on the inside housing deactivates the privacy status. Has interior pushbutton (IPB).

• 4 AA batteries included – up to 2-year battery life
• Helps to minimize key distribution to ensure the integrity of the key system over time
• Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
• ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed

The CO-100 is ideal for:

• Visitor pass through/common areas
• Vestibules or reception area doors controlled by remote release
• Maintenance areas
• Supply/equipment rooms
• Workout/exclusive use spaces
• Private spaces such as restrooms, nursing, or fitting rooms – anywhere visual occupancy indication is desired
