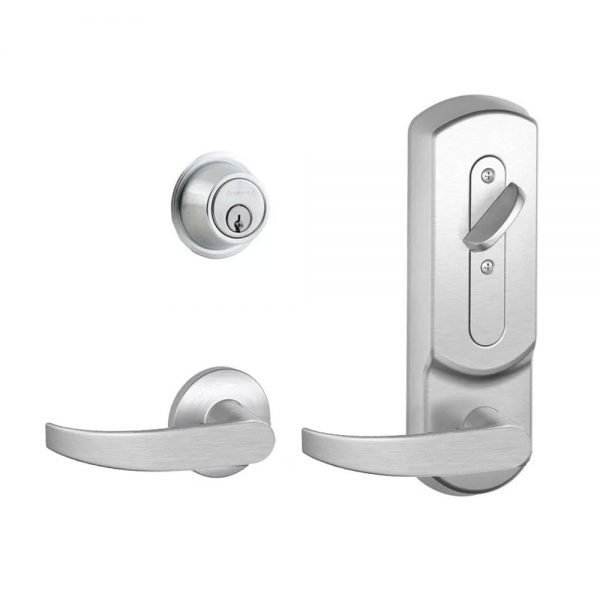

Schlage CS210-B500PD NEP PLY Entrance Single Locking Interconnected Lock – Neptune Lever, Saturn Rose/Plymouth Escutcheon

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified A156.12-2013, Grade 2

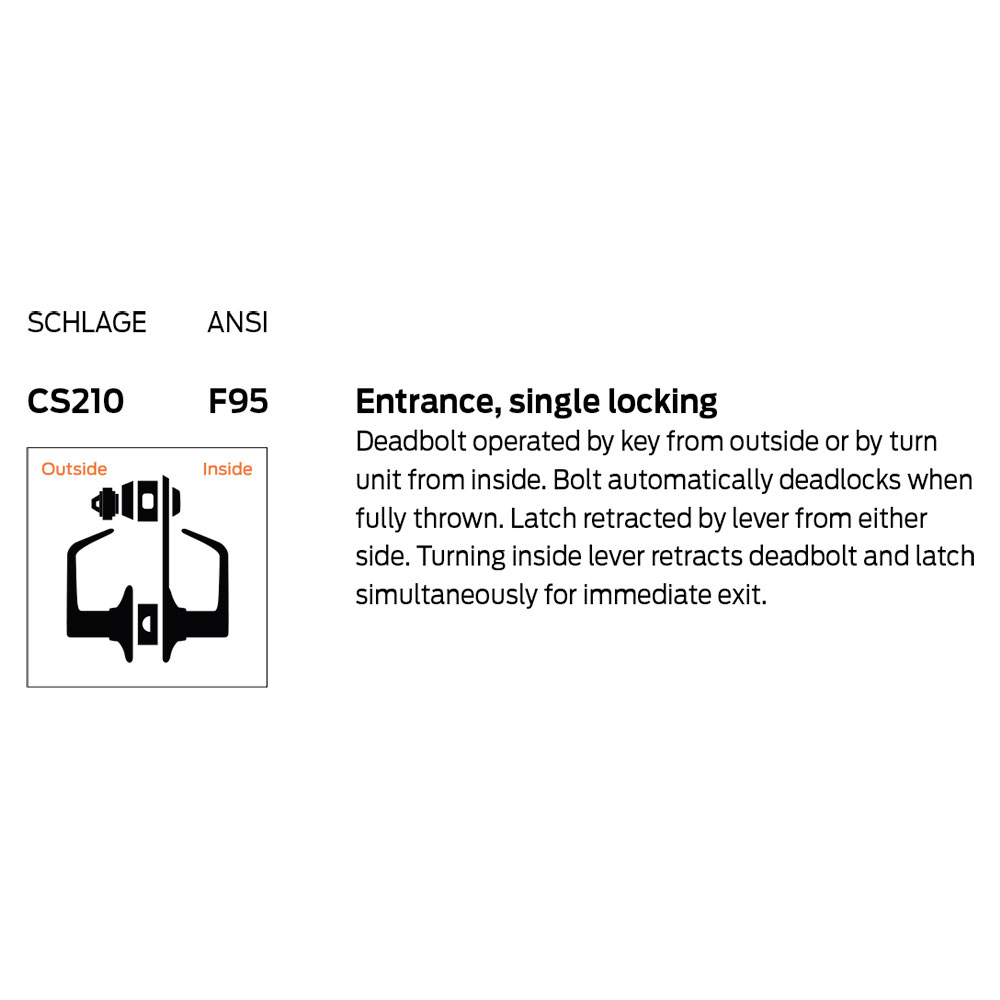

  • ANSI F95 function – entrance single locking
  • UL listed for 3-hour fire door

Available Options:

Product Overview

Schlage CS210-B500PD NEP PLY Entrance Single Locking Interconnected Lock – Grade-2, ANSI F95, 4″ or 5-1/2″ CTC Length, Neptune Lever, Saturn Rose/Plymouth Escutcheon, 2-3/4″ B.S., C Keyway – 626 Satin Chrome

The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. The adjustable escutcheon allows each lock to easily support either 4″ or 5-1/2″ door preps, eliminating any job-site surprises.

  • Exceeds ANSI/BHMA Grade 2 requirements
  • UL listed for 3-hour fire door
  • Solid zinc bolt with hardened steel anti-saw pin
  • Metal wood frame reinforcer uses 3″ screws to anchor deep into wood door frame to protect against kick-in attacks
  • Free spinning, cylinder collar resists wrenching and prying
  • Removeable security shield protects bolt from ice-pick attack through the door
  • Field-configurable for 4″ or 5-1/2″ CTC door prep
  • Adjustable backset, fits 2-3/8″ or 2-3/4″
  • Suites with F Series and S Series tubular locks
Brand

Finishes

626 Satin Chrome
Lock Function

Single Locking Entry
Lever Design

NEP (Neptune)
Rose Design

SAT (Saturn)
Escutcheon Design

PLY (Plymouth)
Backset

2-3/8" to 2-3/4" Adjustable
Latch

1" x 2-1/4" dual option faceplate (square corner standard, round corner included in package). 1" edge bore required
Deadbolt

1 x 2-1/4", dual option faceplate, (square corner standard, round corner included in package), 1" housing diameter, 1" throw
Keyway

Schlage C Keyway
Strike

1-1/8" x 2-3/4", Square corner (deadbolt) and 1-5/8" x 2-1/4", Square corner, full lip, no box
Usage

Medium Duty
ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2
ANSI Function

F95
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
