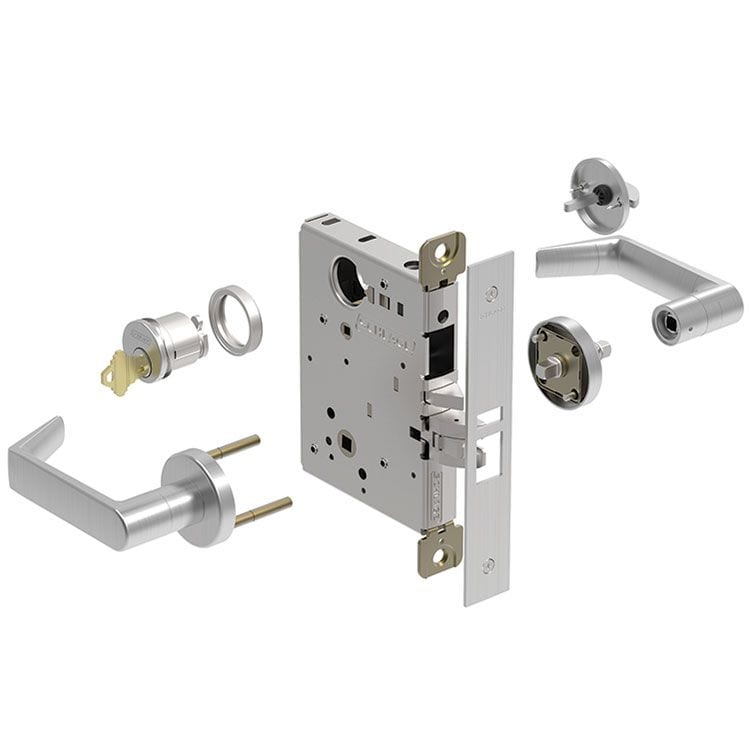

Schlage L9050P 06A Office and Inner Entry Mortise Lock, 06 Lever, A Rose

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function: F04 – Office/Entry
  • P = Conventional 6-pin full-face cylinder

Available Options:

Schlage L9050P Grade 1 Entrance Office Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Field Reversible

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals, and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

ANSI F04 – Office/Entry – Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by lever inside. Outside lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside liner is always free for immediate egress.

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 630 Satin Stainless Steel, 643e Aged Bronze

ANSI Function

F04

Lock Function

Office

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Usage

Heavy Duty

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Cylinder & Keys

30-001 cylinder keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Backset

2-3/4"

Latchbolt

3⁄4" throw stainless steel latch with anti-friction tongue

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Armored Front

1-1/4" x 8" x 7/32" standard

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Case

Steel case and parts are corrosion resistant

Handing

Field-reversible handing without opening lock case

Door Thickness

1-3/4"

Lever Design

06A

Schlage_L_LV9000-Series_Lever_and_Rose_Installation_Instructions Schlage_L_Series_Service_Manual Changing L Series Lock Hand
