Product Overview

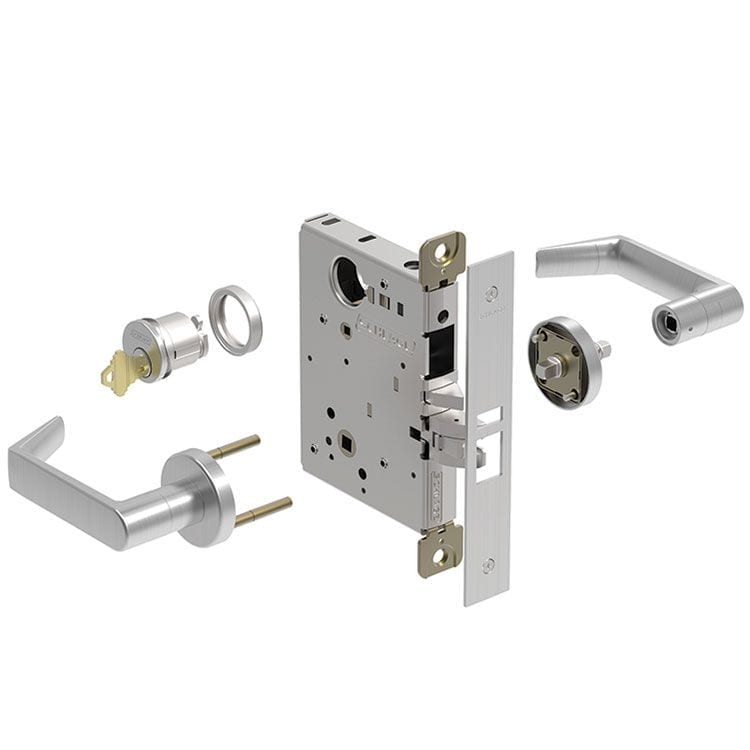

Schlage L9070P Grade 1 Classroom Mortise Lock, Conventional Cylinder, 06 Lever, A Rose, Field Reversible
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
ANSI F05 – Classroom – Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| Brand | |
|---|---|
| Finishes | 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 630 Satin Stainless Steel, 643e Aged Bronze |
| Lock Function | Classroom |
| ANSI Function | F05 |
| Cylinder & Keys | 30-001 cylinder keyed different, with 2 keys |
| Keyway | Schlage C Keyway, Schlage S123 Keyway |
| Usage | Heavy Duty |
| ANSI Grade | ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1 |
| Fire Rating | “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Latchbolt | 3⁄4" throw stainless steel latch with anti-friction tongue |
| Backset | 2-3/4" |
| Strike | ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Case Size | 4-7⁄16" x 6-1⁄16" x 1" |
| Case | Steel case and parts are corrosion resistant |
| Armored Front | 1-1/4" x 8" x 7/32" standard |
| Handing | Field-reversible handing without opening lock case |
| Door Thickness | 1-3/4" |
| Lever Design | 06A |
