Schlage L9070P 17A Classroom Mortise Lock, 17 Lever, A Rose

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function: F05 – Classroom
  • P = Conventional 6-pin full-face cylinder

Available Options:

Product Overview

Schlage L9070P Classroom Mortise Lock, 17 Lever, A Rose, Conventional Cylinder

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

ANSI F05 – Classroom – Latchbolt retracted by key outside or by lever inside. Outside lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel
Lock Function

Classroom
ANSI Function

F05

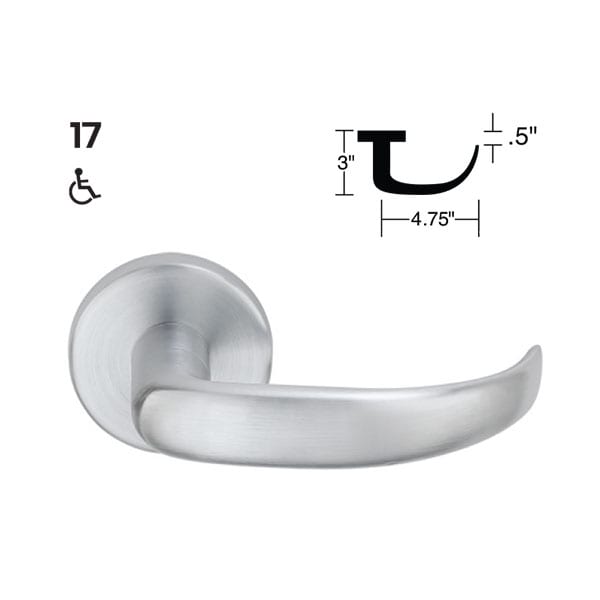

Lever Design

17
Rose Design

A Rose
Cylinder & Keys

30-001 cylinder keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1
Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Latchbolt

3⁄4" throw stainless steel latch with anti-friction tongue
Backset

2-3/4"
Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard
Case Size

4-7⁄16" x 6-1⁄16" x 1"
Case

Steel case and parts are corrosion resistant
Armored Front

1-1/4" x 8" x 7/32" standard
Handing

Field-reversible handing without opening lock case
Door Thickness

1-3/4"
