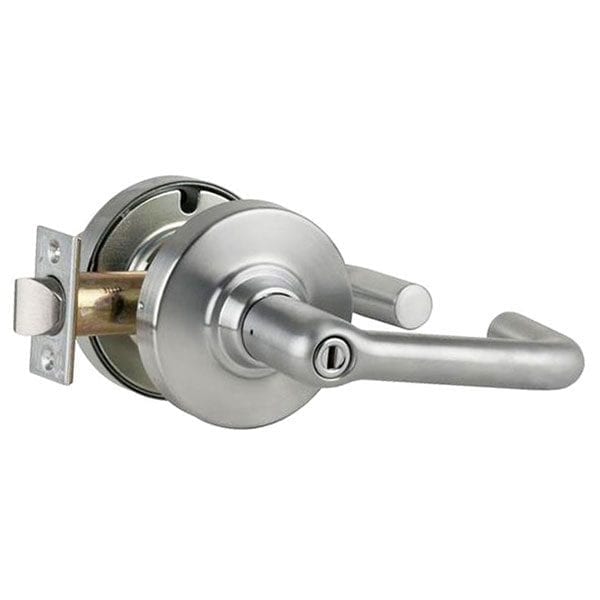

Schlage ND40S TLR (Tubular) Privacy Lever Lock

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Bath/Privacy Function – Push Button Locking
  • ADA Compliant Lever Handles

Available Options:

Product Overview

Schlage ND40S TLR Grade-1 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Tubular Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ANSI Function F76 – No key; emergency access coin turn outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access. Inside lever is always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Privacy
Lever Design

TLR (Tubular)
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Backset

2-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
