Schlage ND60PD RHO (Rhodes) Vestibule Lever Lock

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F88 – Vestibule Lock
  • ADA Compliant, Fire-Rated

Available Options:
Clear

Product Overview

Schlage ND60PD Grade 1 Vestibule Lock, Rhodes Lever, Standard Cylinder, Satin Chrome Finish

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

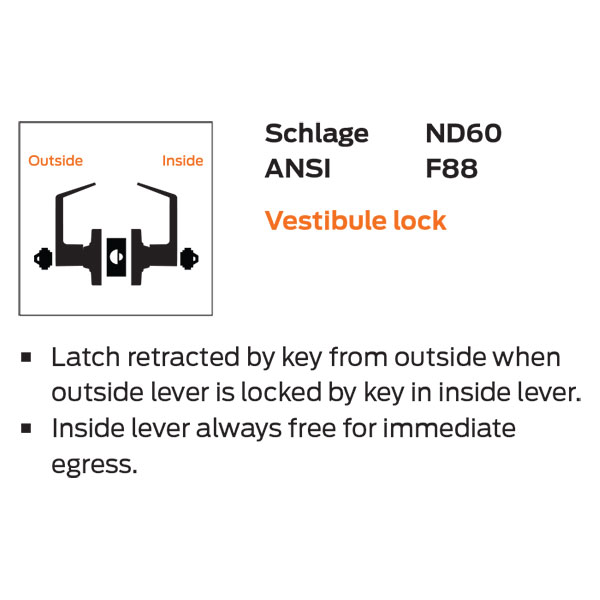

ND60 – Latch retracted by key from outside when outside lever is locked by key in inside lever. Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

626 Satin Chrome
Lock Function

Vestibule
Lever Design

RHO (Rhodes)
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
