Schlage ND94PD SPA (Sparta) Vandlgard Classroom Lever Lock

Usually Ships: 1-2 Business Days
  • Extra Heavy Duty, ANSI/BHMA Certified Grade 1
  • Vandlgard = Clutching Lever Design
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Product Overview

Schlage ND94PD SPA Grade-1 Cylindrical Lever Lock, Classroom Function, Sparta Vandlgard Lever

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.

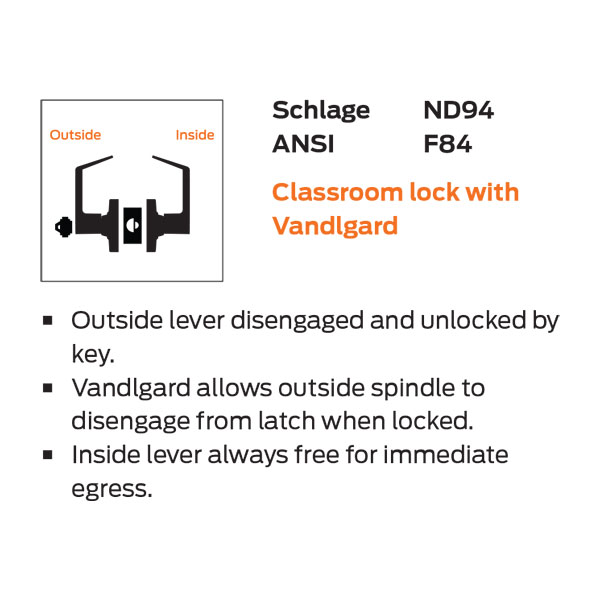

ANSI Function F84 – Outside lever disengaged and unlocked by key. Vandlgard allows outside spindle to disengage from latch when locked. Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome
Keyway

Schlage C Keyway, Schlage S123 Keyway
Lever Design

SPA (Sparta)
Lock Function

Classroom
Clutch Lever

Yes
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
