Schlage ND96BD RHO (Rhodes) SFIC Interchangeable Core Vandlgard Storeroom Lever Lock

$551.25

This item ships FREE! Usually Ships: 1-2 Business Days
  • Extra Heavy Duty – ANSI Grade 1
  • Vandlgard = Clutching Lever Design
  • Interchangeable Core (SFIC Core Sold Separately)

Regarded as one of the world’s strongest cylindrical locksets, ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.

SFIC = Small Size Interchangeable Core

ANSI Function F86 – Outside lever always disengaged. – Entrance by key only. – Vandlgard allows outside spindle to disengage from latch when locked. – Inside lever always free for immediate egress.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

626 Satin Chrome

Lever Design

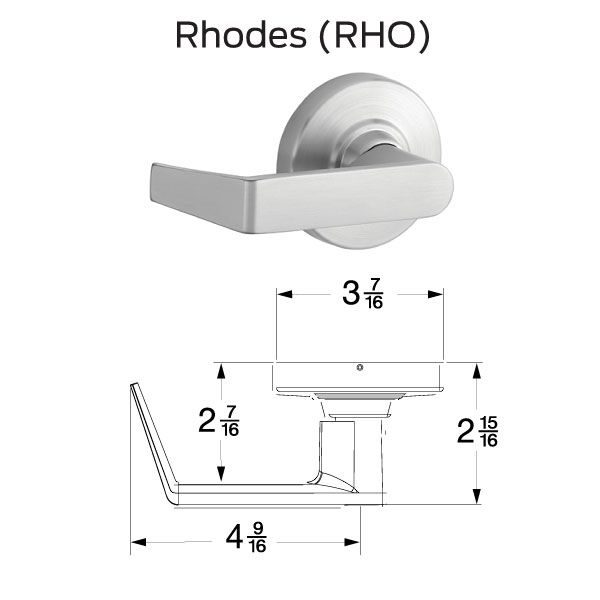

RHO (Rhodes)

Lock Function

Storeroom

Clutch Lever

Yes

Cylinder

Less Interchangeable Core

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

Handing

Non-Handed

Backset

2-3/4"

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness

1-3/4"

Warranty

10 Years

Schlage_ND_Series_Standard_Installation_Instructions
